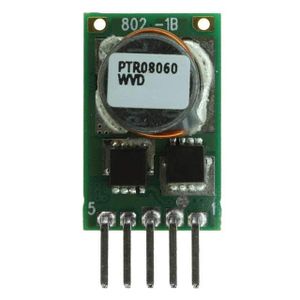

PTR08060WVD دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت PTR08060WVD	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/Power Modules

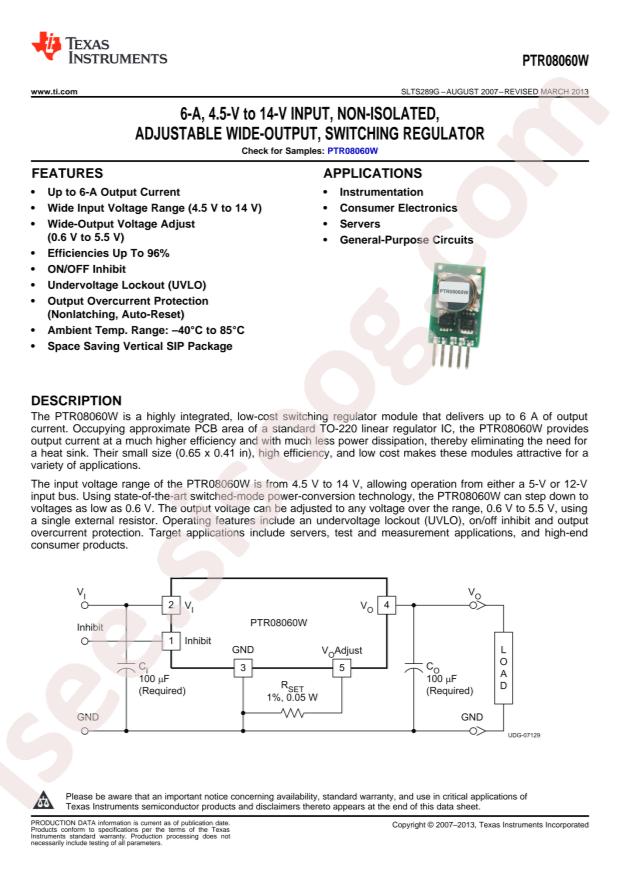

Datasheet: Texas Instruments PTR08060WVD
Package: SIP-5
Manufacturer: Texas Instruments
Type: Non-Isolated PoL Module
Efficiency: 95%
Voltage - Output 2: -
Mounting Type: Through Hole
Package / Case: 5-SIP Module
Series: PTR08060W
Number of Outputs: 1
Voltage - Input (Min): 4.5V
Part Status: Active
Base Part Number: PTR08
Current - Output (Max): 6A
Packaging: Tray
Voltage - Output 3: -
Features: UVLO
Voltage - Output 1: 0.6 ~ 5.5V
Size / Dimension: 0.41" L x 0.37" W x 0.65" H (10.4mm x 9.4mm x 16.5mm)
Operating Temperature: -40°C ~ 85°C
Voltage - Input (Max): 14V
Applications: ITE (Commercial)
detail: Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 5.5V 6A 4.5V - 14V Input
