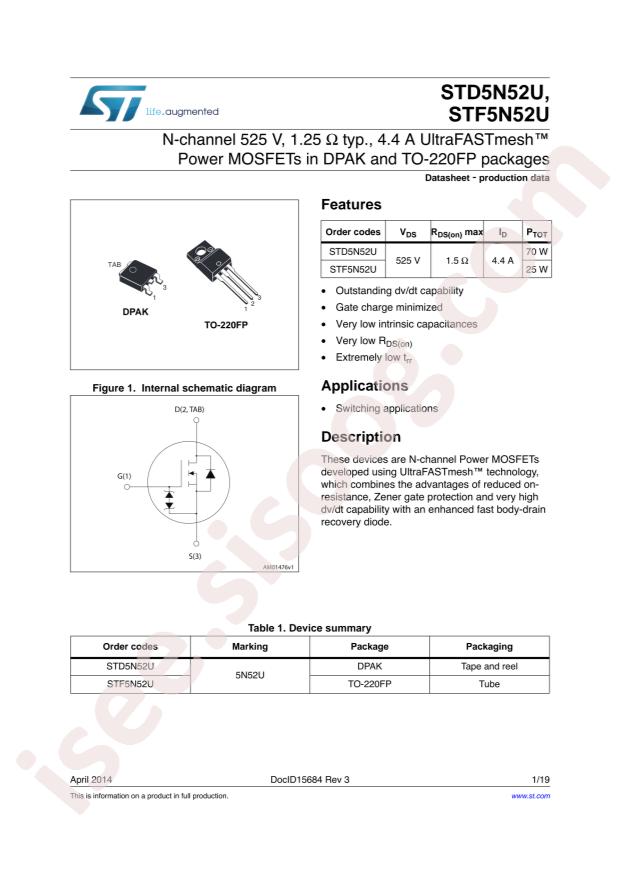

دیتاشیت STD5N52U
مشخصات دیتاشیت
| نام دیتاشیت |
ST(D,F)5N52U
|
| حجم فایل |
995.534
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
19
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STD5N52U
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
70W
-
Total Gate Charge (Qg@Vgs):
16.9nC@10V
-
Drain Source Voltage (Vdss):
525V
-
Input Capacitance (Ciss@Vds):
529pF@25V
-
Continuous Drain Current (Id):
4.4A
-
Gate Threshold Voltage (Vgs(th)@Id):
4.5V@50uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
1.5Ω@10V,2.2A
-
Package:
TO-252
-
Manufacturer:
STMicroelectronics
-
Series:
UltraFASTmesh™
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
525V
-
Current - Continuous Drain (Id) @ 25°C:
4.4A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
1.5Ohm @ 2.2A, 10V
-
Vgs(th) (Max) @ Id:
4.5V @ 50µA
-
Gate Charge (Qg) (Max) @ Vgs:
16.9nC @ 10V
-
Vgs (Max):
±30V
-
Input Capacitance (Ciss) (Max) @ Vds:
529pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
70W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
DPAK
-
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
-
Base Part Number:
STD5N
-
detail:
N-Channel 525V 4.4A (Tc) 70W (Tc) Surface Mount DPAK
