دیتاشیت LMZ14202TZ-ADJ/NOPB

مشخصات دیتاشیت

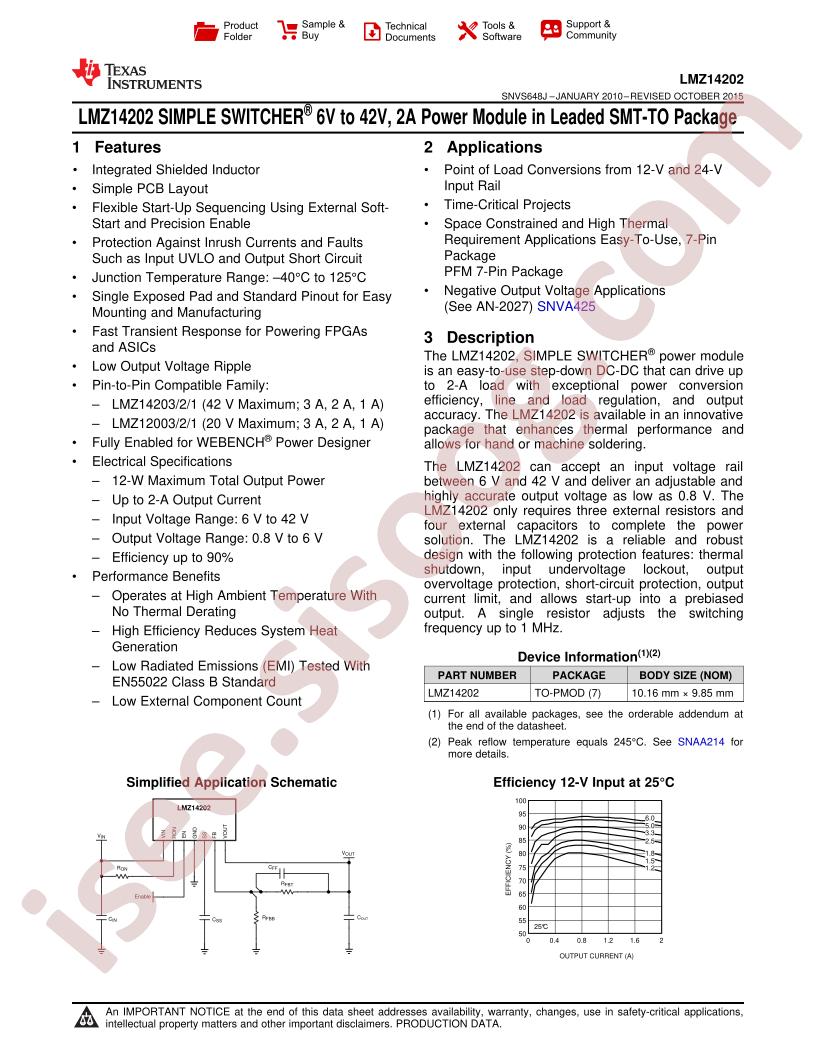

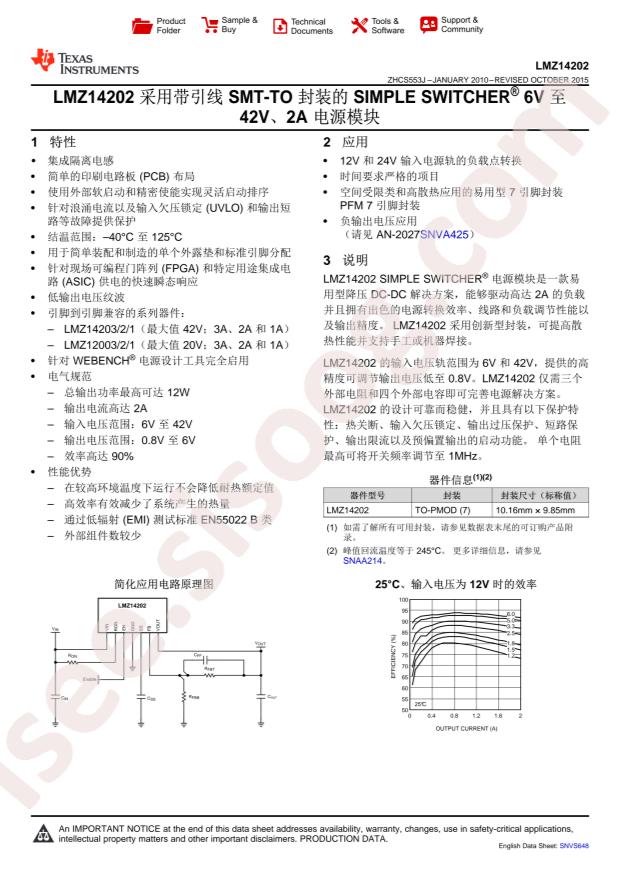

دانلود دیتاشیت LMZ14202 Datasheet	LMZ14202 Datasheet Datasheet

Type: Non-Isolated PoL Module
Efficiency: 90%
Voltage - Output 2: -
Mounting Type: Surface Mount
Package / Case: TO-PMOD-7, Power Module
Series: SIMPLE SWITCHER®
Number of Outputs: 1
Voltage - Input (Min): 6V
Part Status: Active
Base Part Number: LMZ14202
Current - Output (Max): 2A
Control Features: Enable, Active High
Packaging: Cut Tape (CT)
Manufacturer: Texas Instruments
Voltage - Output 3: -
Features: UVLO
Voltage - Output 1: 0.8 ~ 6V
Size / Dimension: 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm)
Operating Temperature: -40°C ~ 125°C
Voltage - Input (Max): 42V
Applications: ITE (Commercial)
detail: Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 6V 2A 6V - 42V Input
