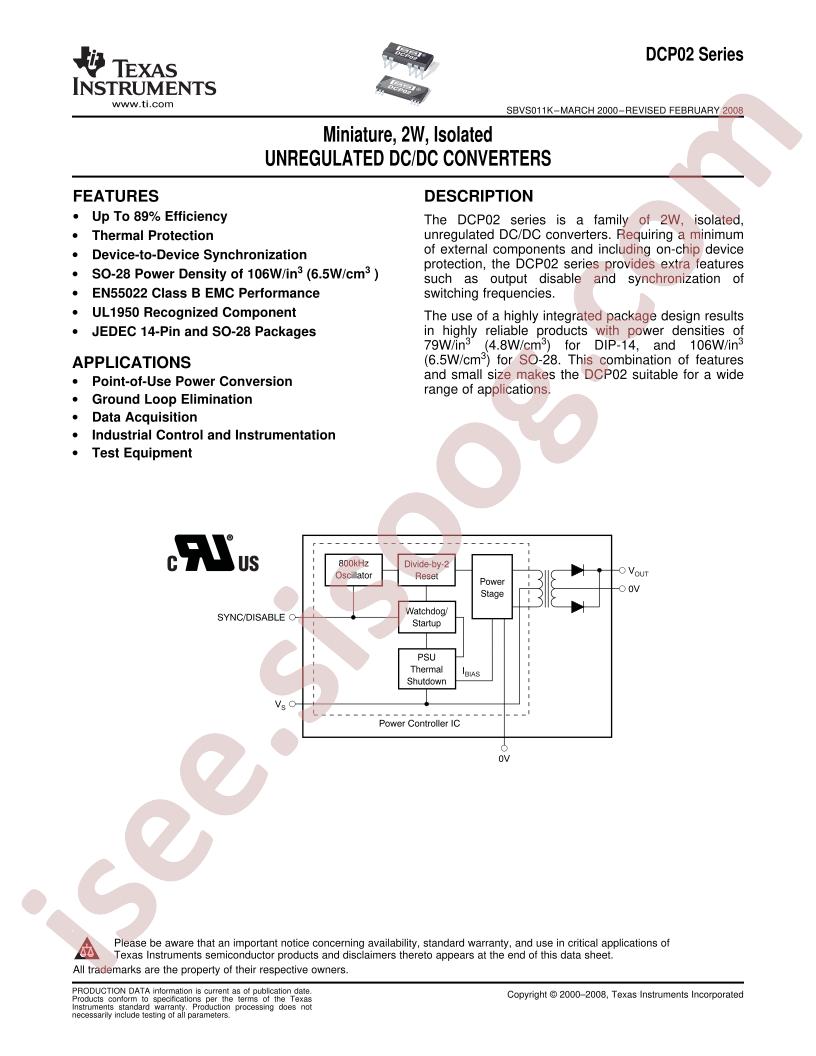

دیتاشیت DCP020503U
مشخصات دیتاشیت
| نام دیتاشیت |
DCP020503U
|
| حجم فایل |
786.151
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
20
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Datasheet:
Texas Instruments DCP020503U
-
Package:
SOP-12
-
Manufacturer:
Texas Instruments
-
Type:
Isolated Module
-
Control Features:
-
-
Packaging:
Tube
-
Mounting Type:
Surface Mount
-
Power (Watts):
2W
-
Voltage - Output 3:
-
-
Supplier Device Package:
12-SOP
-
Voltage - Output 1:
3.3V
-
Operating Temperature:
-40°C ~ 85°C
-
Applications:
ITE (Commercial)
-
Size / Dimension:
0.71" L x 0.30" W x 0.10" H (18.1mm x 7.6mm x 2.7mm)
-
Voltage - Output 2:
-
-
Package / Case:
28-SOIC (0.295", 7.50mm Width), 12 Leads
-
Efficiency:
74%
-
Voltage - Input (Min):
4.5V
-
Voltage - Isolation:
1kV
-
Base Part Number:
DCP0205
-
Part Status:
Active
-
Series:
DCP02 (2W)
-
Current - Output (Max):
606mA
-
Features:
OTP
-
Number of Outputs:
1
-
Voltage - Input (Max):
5.5V
-
detail:
Isolated Module DC DC Converter 1 Output 3.3V 606mA 4.5V - 5.5V Input
