TLV1570CPW دیتاشیت

TLV1570CPW

مشخصات دیتاشیت

نام دیتاشیت TLV1570CPW
حجم فایل 103.738 کیلوبایت
نوع فایل pdf
تعداد صفحات 33

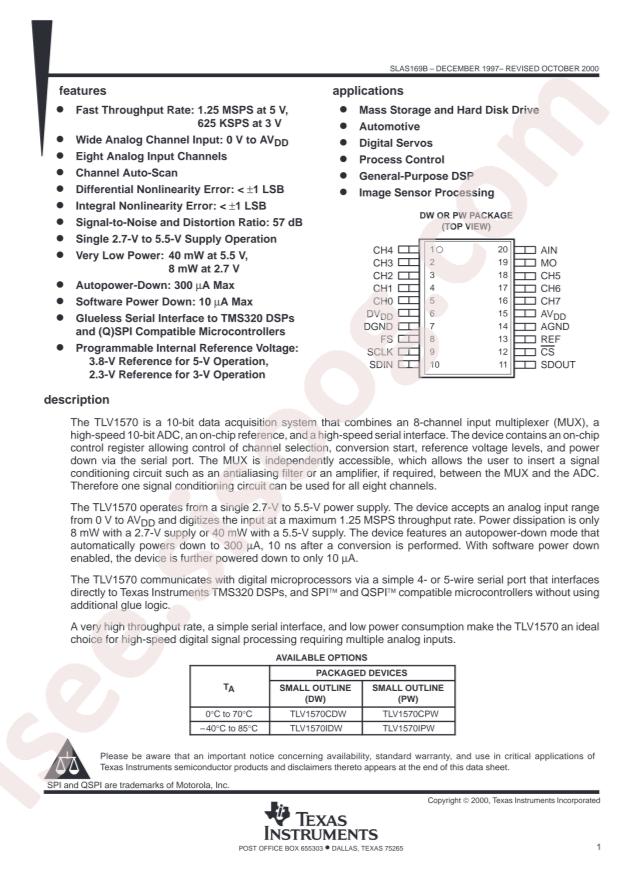

مشاهده دیتاشیت TLV1570CPW

دانلود دیتاشیت

سایر مستندات

TLV1570 Datasheet 32 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Texas Instruments TLV1570CPW
  • Interface: SPI
  • resolution: 10Bit
  • Supply Voltage: 2.7V~5.5V
  • differential input: NO
  • number of channels: 8
  • sampling frequency: 1.25MHz
  • Operating Temperature: 0°C~+70°C
  • Package: TSSOP-20
  • Manufacturer: Texas Instruments
  • Mounting Type: Surface Mount
  • Voltage - Supply, Digital: 2.7V ~ 5.5V
  • Input Type: Single Ended
  • Architecture: SAR
  • Packaging: Tube
  • Number of Bits: 10
  • Data Interface: SPI
  • Number of Inputs: 8
  • Supplier Device Package: 20-TSSOP
  • Ratio - S/H:ADC: -
  • Sampling Rate (Per Second): 1.25M
  • Number of A/D Converters: 1
  • Part Status: Active
  • Package / Case: 20-TSSOP (0.173", 4.40mm Width)
  • Voltage - Supply, Analog: 2.7V ~ 5.5V
  • Reference Type: External, Internal
  • Base Part Number: TLV157
  • Series: -
  • Features: -
  • Configuration: MUX-ADC
  • detail: 10 Bit Analog to Digital Converter 8 Input 1 SAR 20-TSSOP
