STW48N60M2 数据手册
其他文档
STW48N60M2 12 pages
技术规格
- RoHS: true
- Type: N Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs

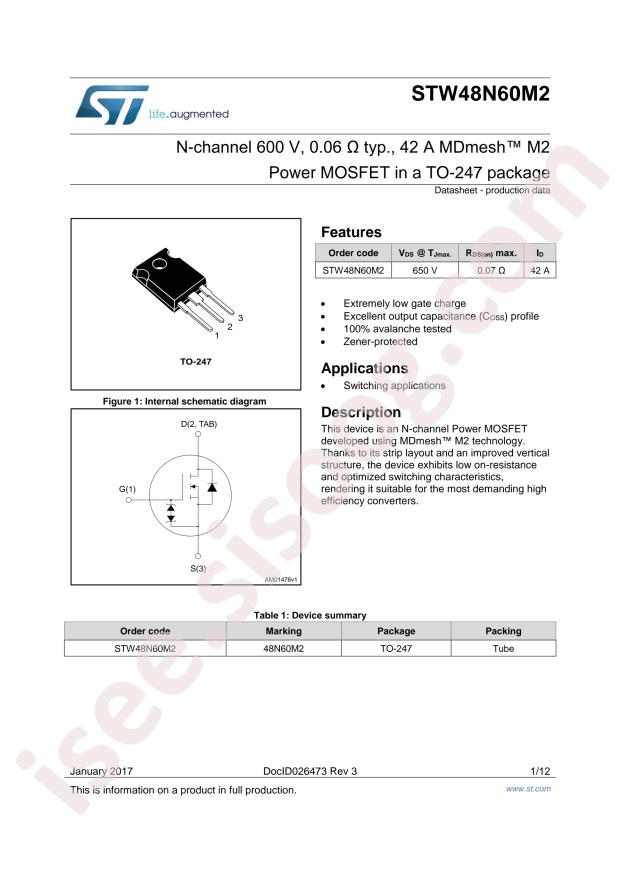

- Datasheet: STMicroelectronics STW48N60M2
- Power Dissipation (Pd): 300W
- Drain Source Voltage (Vdss): 600V
- Continuous Drain Current (Id): 42A
- Gate Threshold Voltage (Vgs(th)@Id): 4V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id): 70mΩ@10V,21A
- Package: TO-247
- Manufacturer: STMicroelectronics
- Series: MDmesh™ M2
- Packaging: Tube
- Part Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 600V
- Current - Continuous Drain (Id) @ 25°C: 42A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 70mOhm @ 21A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 70nC @ 10V
- Vgs (Max): ±25V
- Input Capacitance (Ciss) (Max) @ Vds: 3060pF @ 100V
- FET Feature: -
- Power Dissipation (Max): 300W (Tc)
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Supplier Device Package: TO-247
- Package / Case: TO-247-3
- Base Part Number: STW48N
- detail: N-Channel 600V 42A (Tc) 300W (Tc) Through Hole TO-247
