THS5651AIPW دیتاشیت

THS5651AIPW

مشخصات دیتاشیت

نام دیتاشیت THS5651AIPW
حجم فایل 119.336 کیلوبایت
نوع فایل pdf
تعداد صفحات 35

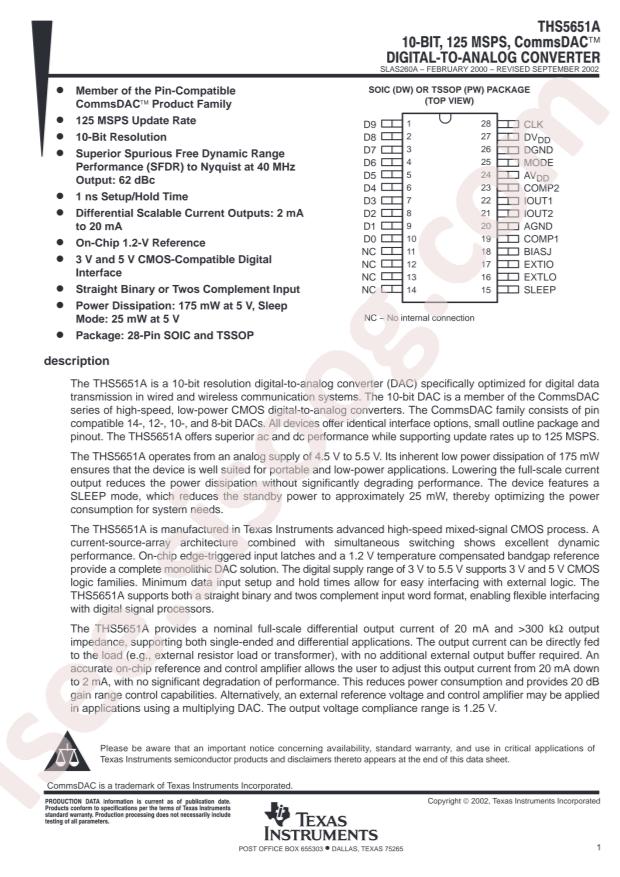

مشاهده دیتاشیت THS5651AIPW

دانلود دیتاشیت

سایر مستندات

THS5651A 33 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Digital To Analog Converters (DACs)
  • Datasheet: Texas Instruments THS5651AIPW
  • Interface: Parallel
  • resolution: 10
  • output type: Current-非缓冲
  • built-up time: 35ns
  • Supply Voltage: 3V~5.5V
  • Integral nonlinearity: ±0.5LSB;±0.25LSB
  • Operating Temperature: -40°C~+85°C
  • Package: TSSOP-28
  • Manufacturer: Texas Instruments
  • Part Status: Active
  • Voltage - Supply, Digital: 3V ~ 5.5V
  • Mounting Type: Surface Mount
  • Package / Case: 28-TSSOP (0.173", 4.40mm Width)
  • Settling Time: 35ns (Typ)
  • Series: CommsDAC™
  • INL/DNL (LSB): ±0.5, ±0.25
  • Differential Output: Yes
  • Voltage - Supply, Analog: 5V
  • Reference Type: External, Internal
  • Data Interface: Parallel
  • Base Part Number: THS565
  • Number of Bits: 10
  • Packaging: Tube
  • Number of D/A Converters: 1
  • Supplier Device Package: 28-TSSOP
  • Architecture: Current Source
  • detail: 10 Bit Digital to Analog Converter 1 28-TSSOP
