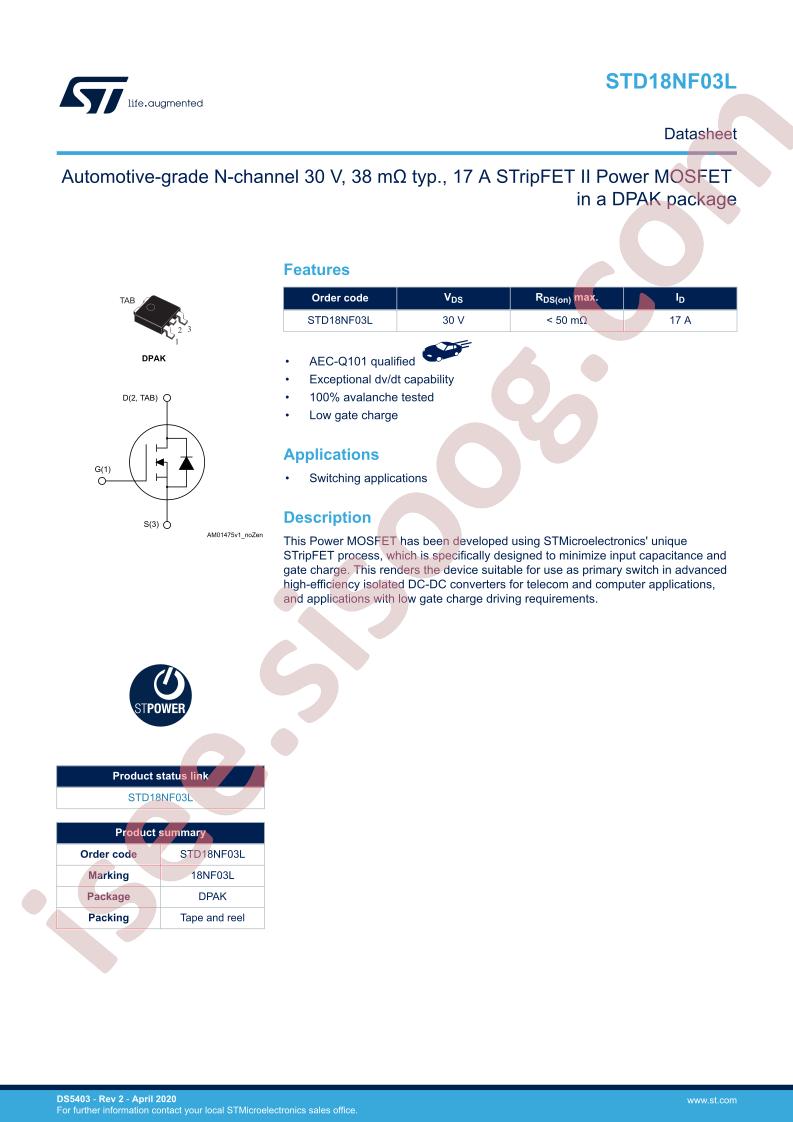

STD18NF03L دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STD18NF03L
|
|
حجم فایل
|
435.766
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
15
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
STripFET™ II
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
30V
-
Current - Continuous Drain (Id) @ 25°C:
17A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
5V, 10V
-
Rds On (Max) @ Id, Vgs:
50mOhm @ 8.5A, 10V
-
Vgs(th) (Max) @ Id:
2.2V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
6.5nC @ 5V
-
Vgs (Max):
±16V
-
Input Capacitance (Ciss) (Max) @ Vds:
320pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
30W (Tc)
-
Operating Temperature:
-55°C ~ 175°C (TJ)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
DPAK
-
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
-
Base Part Number:
STD18
-
detail:
N-Channel 30V 17A (Tc) 30W (Tc) Surface Mount DPAK
