VIPER012HSTR دیتاشیت

مشخصات دیتاشیت

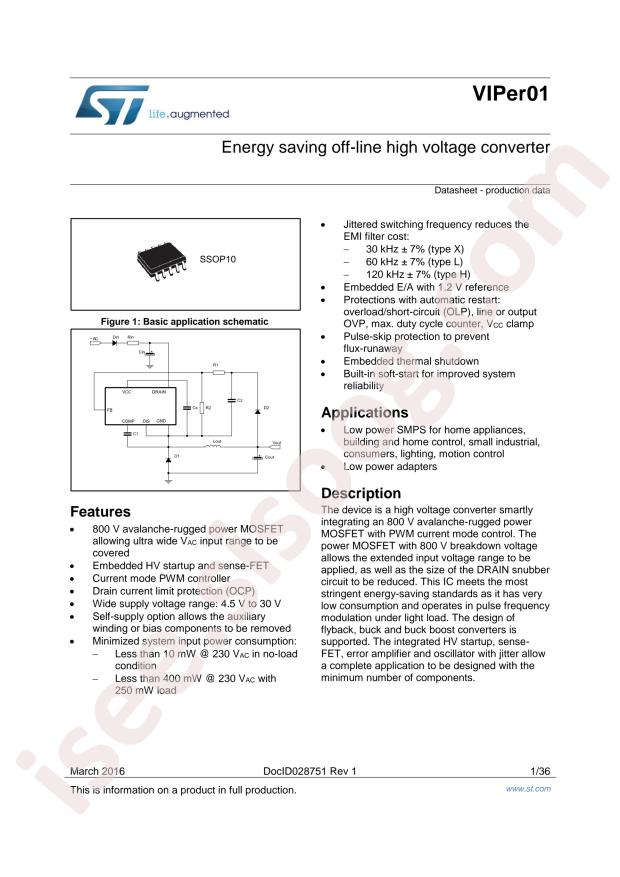

مشاهده دیتاشیت VIPER012HSTR	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/AC-DC Controllers & Regulators
Topology: Step-down;Step-down-Boost;Flyback
Datasheet: STMicroelectronics VIPER012HSTR
Duty Cycle: 80%
Supply Voltage: 4.5V~30V
Breakdown Voltage: 800V
Switching Frequency: 120kHz
Operating Temperature: -40°C~+150°C@(Tj)
Package: SOP-10-1mm
Manufacturer: STMicroelectronics
Series: -
Packaging: Tube
Part Status: Active
Output Isolation: Either
Internal Switch(s): Yes
Voltage - Breakdown: 800V
Voltage - Supply (Vcc/Vdd): 4.5V ~ 30V
Frequency - Switching: 120kHz
Power (Watts): 7W
Fault Protection: Current Limiting, Over Temperature, Over Voltage, Short Circuit
Control Features: -
Package / Case: 10-SOP (0.154", 3.90mm Width)
Supplier Device Package: 10-SSOP
Mounting Type: Surface Mount
Base Part Number: VIPER01
detail: Converter Offline Buck, Buck-Boost, Flyback Topology 120kHz 10-SSOP
