STF140N6F7 دیتاشیت

STF140N6F7

مشخصات دیتاشیت

نام دیتاشیت STF140N6F7
حجم فایل 57.203 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

مشاهده دیتاشیت STF140N6F7

دانلود دیتاشیت

سایر مستندات

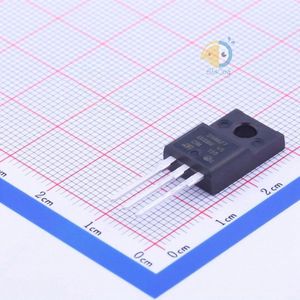

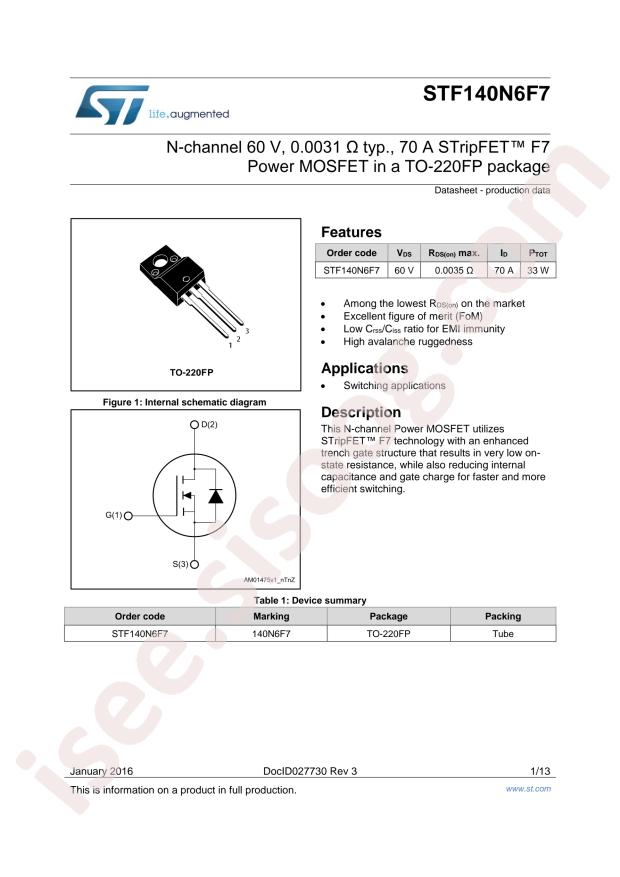

STF140N6F7 Datasheet 13 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STF140N6F7
  • Power Dissipation (Pd): 33W
  • Drain Source Voltage (Vdss): 60V
  • Continuous Drain Current (Id): 70A
  • Gate Threshold Voltage (Vgs(th)@Id): 4V@250uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 3.5mΩ@10V,35A
  • Package: TO-220F-3
  • Manufacturer: STMicroelectronics
  • Series: STripFET™
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 60V
  • Current - Continuous Drain (Id) @ 25°C: 70A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 3.5mOhm @ 35A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 55nC @ 10V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 3100pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 33W (Tc)
  • Operating Temperature: 175°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220FP
  • Package / Case: TO-220-3 Full Pack
  • Base Part Number: STF14
  • detail: N-Channel 60V 70A (Tc) 33W (Tc) Through Hole TO-220FP
