دیتاشیت LMZ14201TZ-ADJ/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LMZ14201 |
|---|---|
| حجم فایل | 2002.353 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 29 |

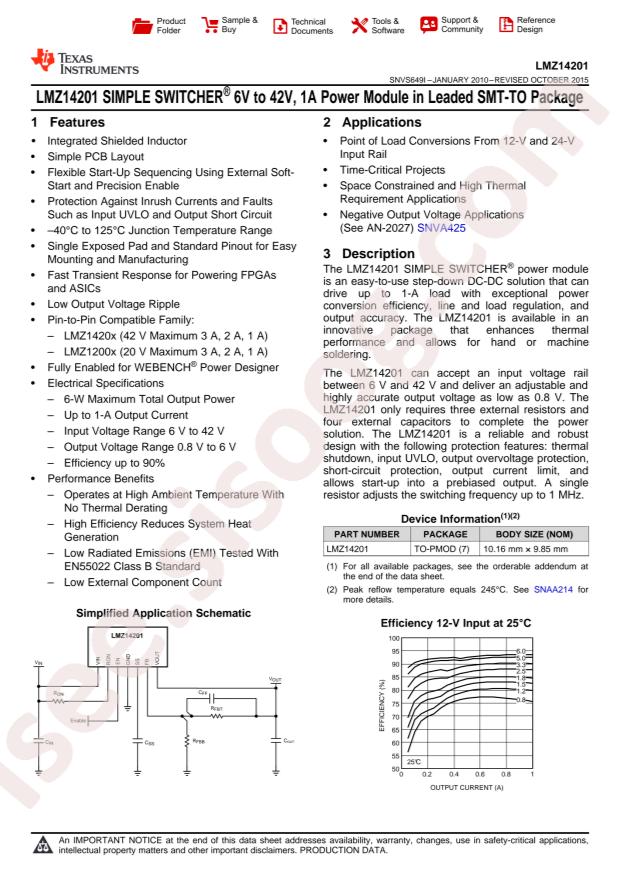

دانلود دیتاشیت LMZ14201 |
LMZ14201 Datasheet |
|---|
مشخصات
- Type: Non-Isolated PoL Module
- Efficiency: 90%
- Voltage - Output 2: -
- Mounting Type: Surface Mount
- Package / Case: TO-PMOD-7, Power Module
- Series: SIMPLE SWITCHER®
- Number of Outputs: 1
- Voltage - Input (Min): 6V
- Part Status: Active
- Base Part Number: LMZ14201
- Current - Output (Max): 1A
- Control Features: Enable, Active High
- Packaging: Cut Tape (CT)
- Manufacturer: Texas Instruments
- Voltage - Output 3: -
- Features: UVLO
- Voltage - Output 1: 0.8 ~ 6V
- Size / Dimension: 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm)
- Operating Temperature: -40°C ~ 125°C
- Voltage - Input (Max): 42V
- Applications: ITE (Commercial)
- detail: Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 6V 1A 6V - 42V Input
