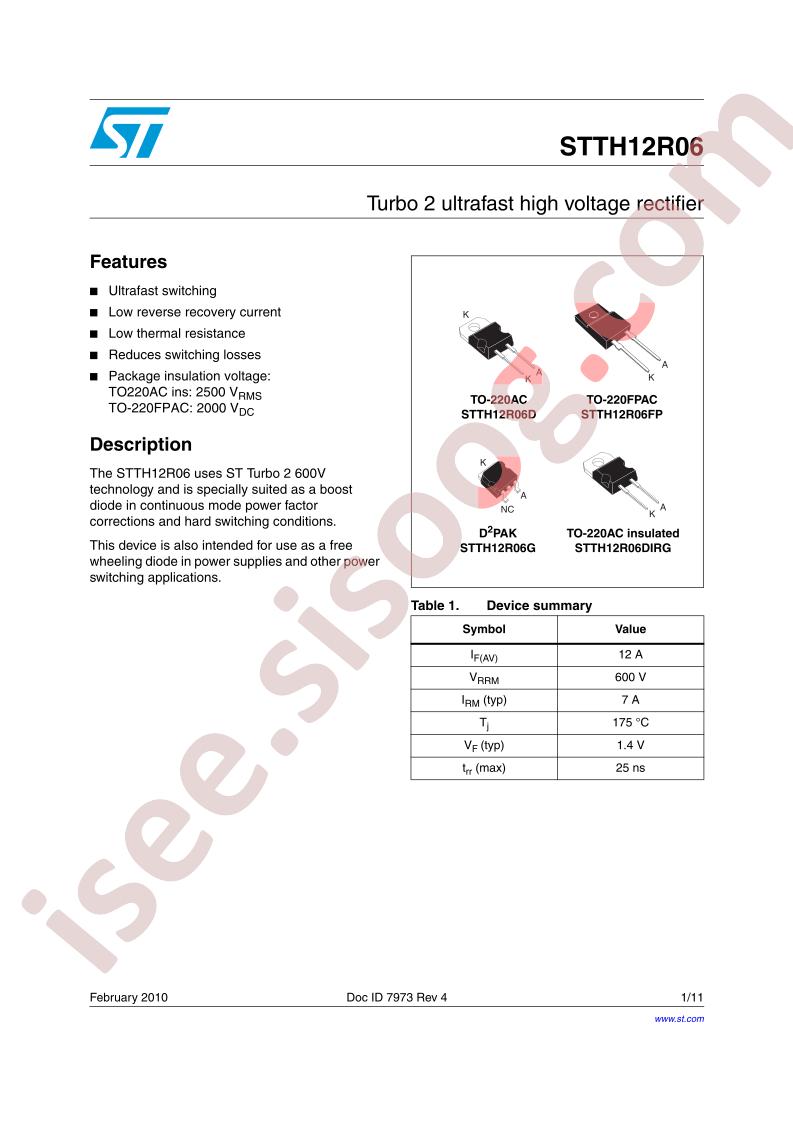

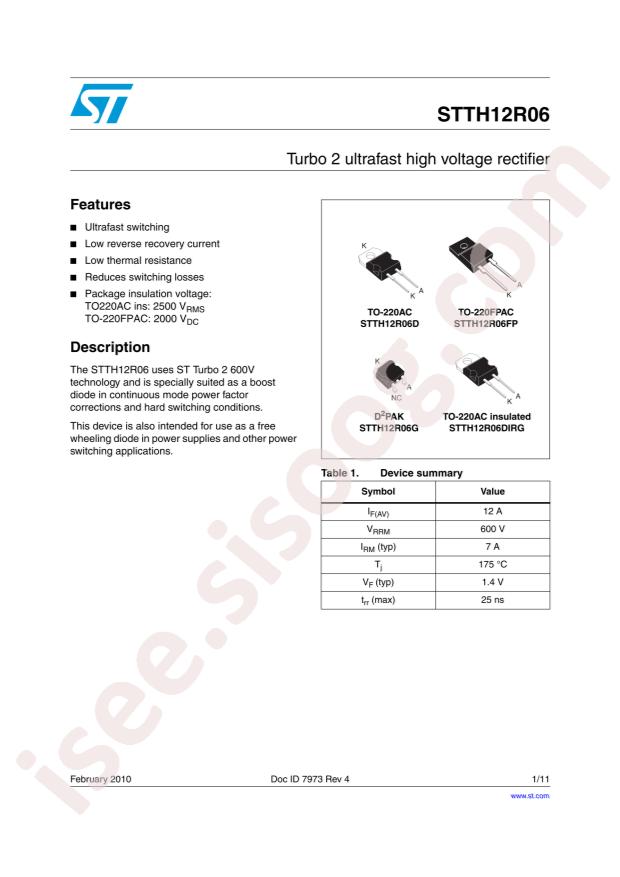

STTH12R06FP Datasheet
Datasheet specifications
|
Datasheet's name
|
STTH12R06FP
|
|
File size
|
48.821
KB
|
|
File type
|
pdf
|
|
Number of pages
|
11
|
Technical specifications
-
RoHS:
true
-
Category:
Diodes/Diodes - Fast Recovery Rectifiers
-
Datasheet:
STMicroelectronics STTH12R06FP
-
Reverse Voltage (Vr):
600V
-
Operating Temperature:
+175°C@(Tj)
-
Forward Voltage (Vf@If):
2.9V@12A
-
Reverse Leakage Current:
45uA@600V
-
Reverse Recovery Time (trr):
45ns
-
Average Rectified Current (Io):
12A
-
Package:
TO-220F-2
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Diode Type:
Standard
-
Voltage - DC Reverse (Vr) (Max):
600V
-
Current - Average Rectified (Io):
12A
-
Voltage - Forward (Vf) (Max) @ If:
2.9V @ 12A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
45µA @ 600V
-
Capacitance @ Vr, F:
-
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-2 Full Pack, Isolated Tab
-
Supplier Device Package:
TO-220FPAC
-
Operating Temperature - Junction:
175°C (Max)
-
Base Part Number:
STTH12R
-
detail:
Diode Standard 600V 12A Through Hole TO-220FPAC
