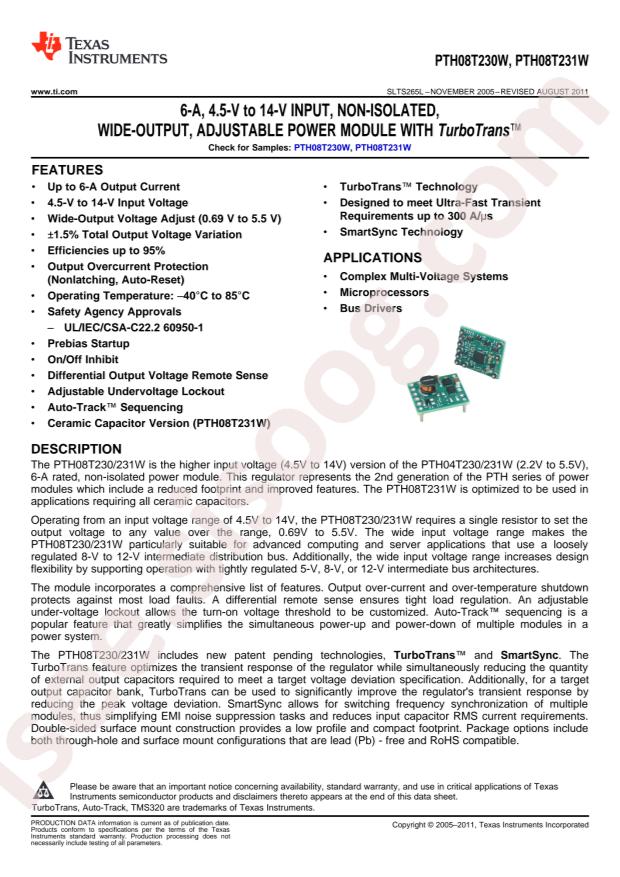

PTH08T231WAD دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
PTH08T231WAD
|
|
حجم فایل
|
125.372
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
39
|
مشخصات فنی
-
RoHS:
true
-
Category:
Power Supply Chip/Power Modules
-
Datasheet:
Texas Instruments PTH08T231WAD
-
Package:
DIP-10
-
Manufacturer:
Texas Instruments
-
Type:
Non-Isolated PoL Module
-
Efficiency:
95%
-
Voltage - Output 2:
-
-
Mounting Type:
Through Hole
-
Package / Case:
10-DIP Module
-
Series:
PTH08T231W
-
Number of Outputs:
1
-
Voltage - Input (Min):
4.5V
-
Part Status:
Active
-
Base Part Number:
PTH08
-
Current - Output (Max):
6A
-
Packaging:
Tray
-
Voltage - Output 3:
-
-
Features:
-
-
Voltage - Output 1:
0.69 ~ 5.5V
-
Size / Dimension:
0.75" L x 0.62" W x 0.34" H (19.1mm x 15.7mm x 8.6mm)
-
Operating Temperature:
-40°C ~ 85°C
-
Voltage - Input (Max):
14V
-
Applications:
ITE (Commercial)
-
detail:
Non-Isolated PoL Module DC DC Converter 1 Output 0.69 ~ 5.5V 6A 4.5V - 14V Input
