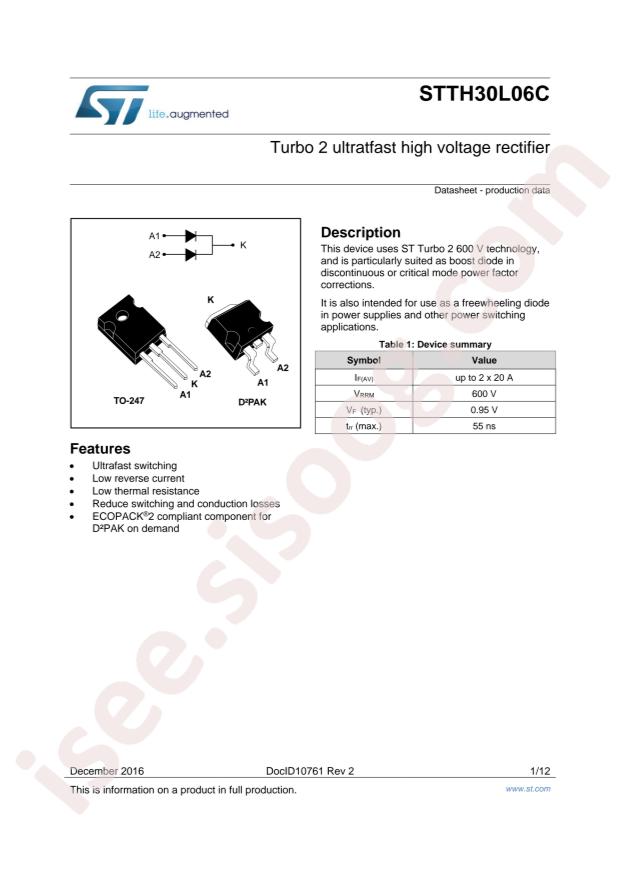

STTH30L06CW دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STTH30L06CW
|
|
حجم فایل
|
47.027
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
12
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/Diodes - Fast Recovery Rectifiers
-
Datasheet:
STMicroelectronics STTH30L06CW
-
Diode Configuration:
Dual Common Cathode
-
Reverse Voltage (Vr):
600V
-
Operating Temperature:
+175°C@(Tj)
-
Forward Voltage (Vf@If):
1.55V@15A
-
Reverse Leakage Current:
15uA@600V
-
Reverse Recovery Time (trr):
55ns
-
Average Rectified Current (Io):
15A
-
Package:
TO-247
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Diode Type:
Standard
-
Voltage - DC Reverse (Vr) (Max):
600V
-
Current - Average Rectified (Io) (per Diode):
20A
-
Voltage - Forward (Vf) (Max) @ If:
1.55V @ 15A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
15µA @ 600V
-
Operating Temperature - Junction:
175°C (Max)
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-3
-
Supplier Device Package:
TO-247-3
-
Base Part Number:
STTH30
-
detail:
Diode Array 1 Pair Common Cathode Standard 600V 20A Through Hole TO-247-3
