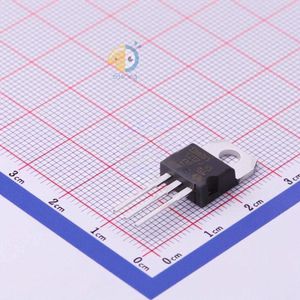

STF13N80K5 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|

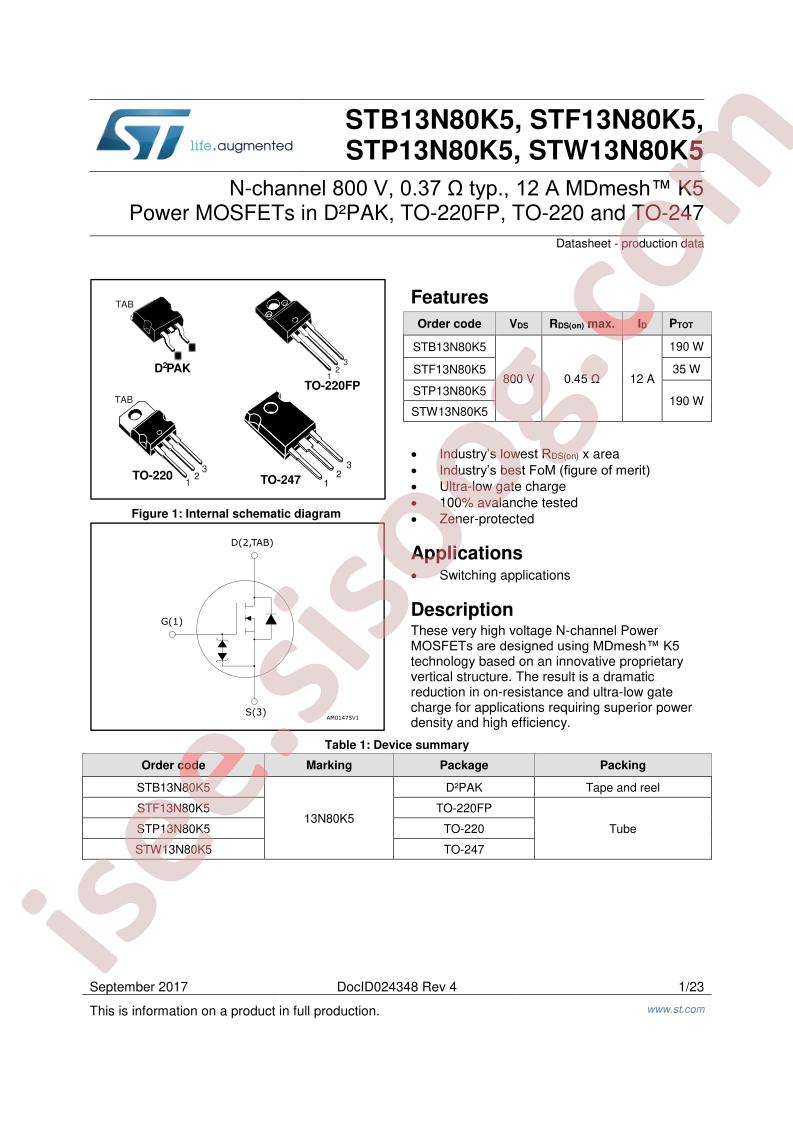

ST(B,F,P,W)13N80K5
|
|
حجم فایل
|
1232.593
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
23
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
SuperMESH5™
-
Packaging:
Tube
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
800V
-
Current - Continuous Drain (Id) @ 25°C:
12A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
450mOhm @ 6A, 10V
-
Vgs(th) (Max) @ Id:
5V @ 100µA
-
Gate Charge (Qg) (Max) @ Vgs:
29nC @ 10V
-
Vgs (Max):
±30V
-
Input Capacitance (Ciss) (Max) @ Vds:
870pF @ 100V
-
FET Feature:
-
-
Power Dissipation (Max):
35W (Tc)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-220FP
-
Package / Case:
TO-220-3 Full Pack
-
Base Part Number:
STF13
-
detail:
N-Channel 800V 12A (Tc) 35W (Tc) Through Hole TO-220FP
