ACST310-8FP 数据手册
其他文档
ACST310-8FP 14 pages
技术规格
- RoHS: true
- Category: Triode/MOS Tube/Transistor/TRIACs
- SCR Type: 门极灵敏型-High Speed
- Datasheet: STMicroelectronics ACST310-8FP
- Holding Current (Ih): 20mA
- Operating Temperature: -40°C~+125°C@(Tj)
- Gate Trigger Current(Igt): 10mA
- Gate Trigger Voltage (Vgt): 1.1V
- RMS On-State Current(It (rms)): 3A
- Peak Repetitive Off?State Voltage (Vdrm): 800V

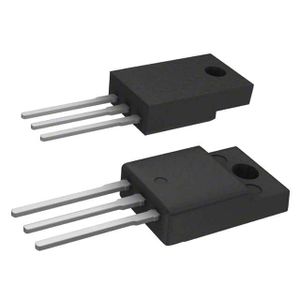

- Package: TO-220
- Manufacturer: STMicroelectronics
- Series: ACS™/A.S.D®
- Packaging: Tube
- Part Status: Active
- Triac Type: Logic - Sensitive Gate
- Voltage - Off State: 800V
- Current - On State (It (RMS)) (Max): 3A
- Voltage - Gate Trigger (Vgt) (Max): 1.1V
- Current - Non Rep. Surge 50, 60Hz (Itsm): 20A, 21A
- Current - Gate Trigger (Igt) (Max): 10mA
- Current - Hold (Ih) (Max): 20mA
- Configuration: Single
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack
- Supplier Device Package: TO-220FPAB
- Base Part Number: ACST310
- detail: TRIAC Logic - Sensitive Gate 800V 3A Through Hole TO-220FPAB
