دیتاشیت TN2010H-6FP

TN2010H-6FP

مشخصات دیتاشیت

نام دیتاشیت TN2010H-6FP
حجم فایل 346.929 کیلوبایت
نوع فایل pdf
تعداد صفحات 9

دانلود دیتاشیت TN2010H-6FP

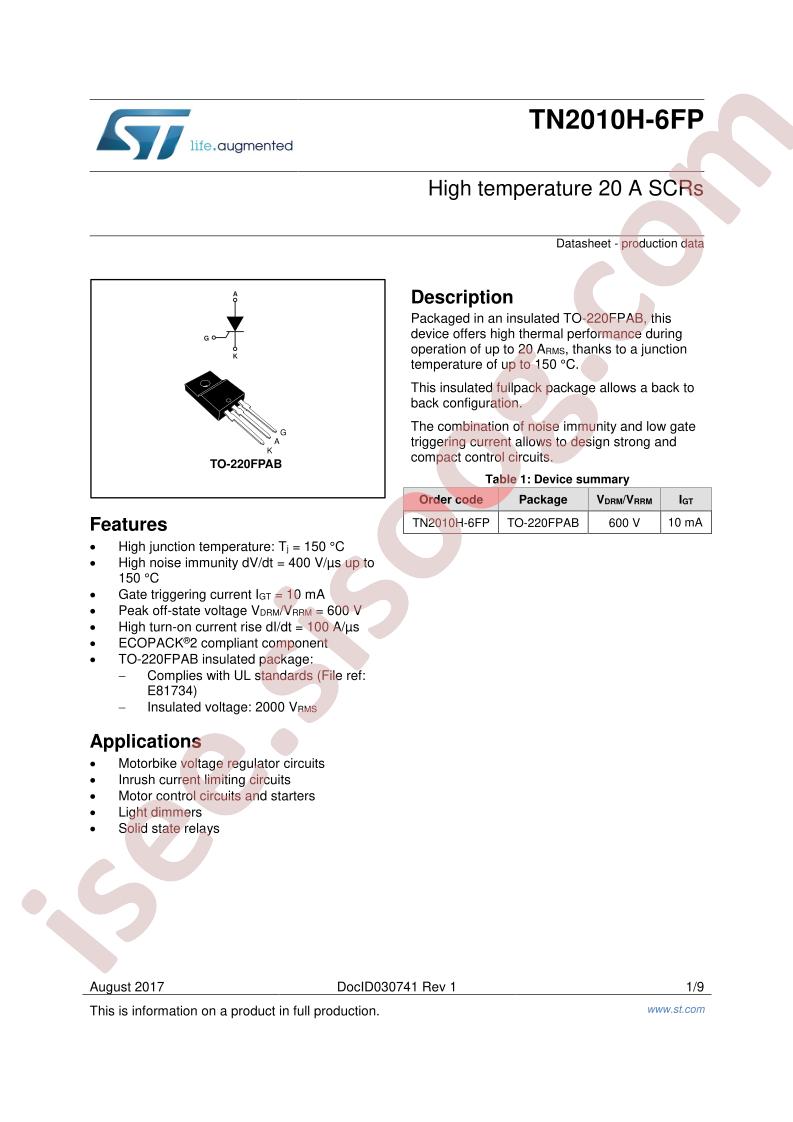

TN2010H-6FP Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Voltage - Off State: 600V
  • Voltage - Gate Trigger (Vgt) (Max): 1.3V
  • Current - Gate Trigger (Igt) (Max): 10mA
  • Voltage - On State (Vtm) (Max): 1.6V
  • Current - On State (It (AV)) (Max): 12.7A
  • Current - On State (It (RMS)) (Max): 20A
  • Current - Hold (Ih) (Max): 40mA
  • Current - Off State (Max): 5µA
  • Current - Non Rep. Surge 50, 60Hz (Itsm): 197A, 180A
  • SCR Type: Sensitive Gate
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3 Full Pack
  • Supplier Device Package: TO-220FPAB
  • Base Part Number: TN2010
  • detail: SCR 600V 20A Sensitive Gate Through Hole TO-220FPAB
