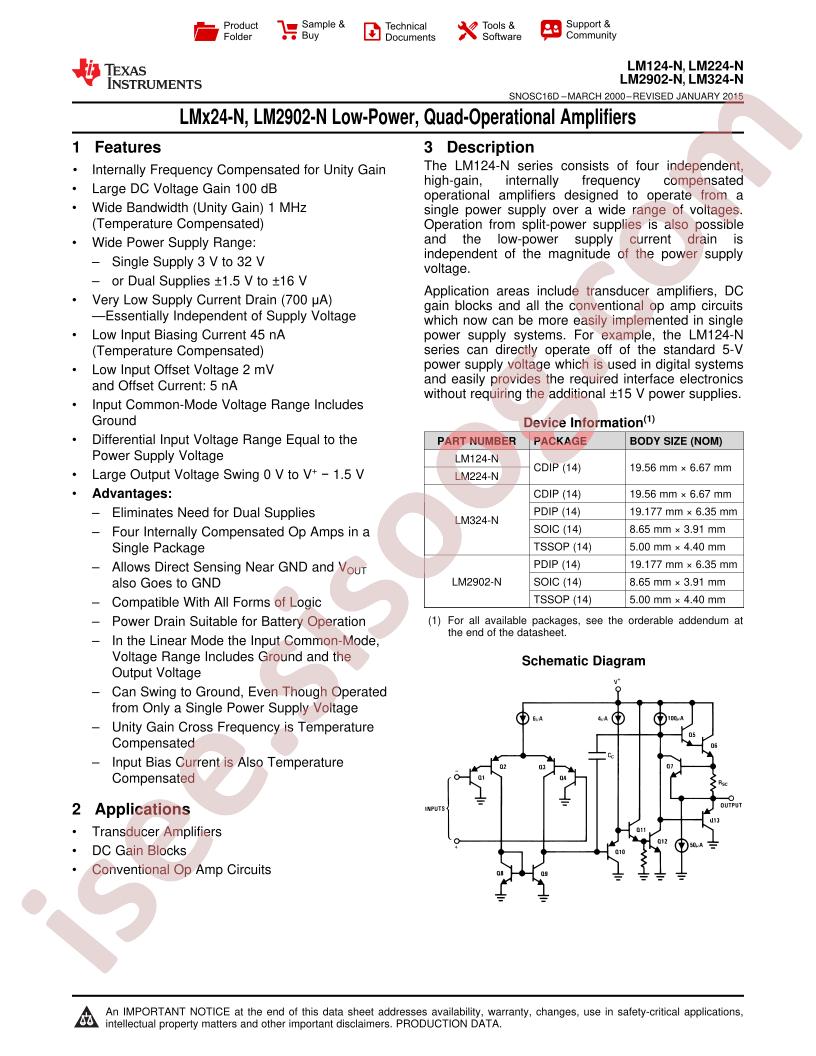

LM124/224/324/2902-N Datasheet 数据手册

LM124/224/324/2902-N Datasheet

数据手册规格

数据手册名称 LM124/224/324/2902-N Datasheet
文件大小 2070.131 千字节
文件类型 pdf
页数 38

下载数据手册 LM124/224/324/2902-N Datasheet

下载数据手册

其他文档

LM224J 39 pages

技术规格

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Operational Amplifier
  • Datasheet: Texas Instruments LM124AJ/PB
  • -3db Bandwidth: -
  • Output Current: 40mA
  • Number of Circuits: 4
  • Operating Temperature: -55°C~+125°C
  • Current - Input Bias(Ib): 45nA
  • Gain Bandwidth Product(GBP): 1MHz
  • Package: DIP-14
  • Manufacturer: Texas Instruments
  • Voltage - Input Offset: 1mV
  • Current - Supply: 1.5mA
  • Mounting Type: Through Hole
  • Package / Case: 14-CDIP (0.300", 7.62mm)
  • Amplifier Type: General Purpose
  • Series: -
  • Base Part Number: LM124
  • Part Status: Active
  • Gain Bandwidth Product: 1.2MHz
  • Current - Input Bias: 20nA
  • Voltage - Supply, Single/Dual (±): 3V ~ 32V, ±1.5V ~ 16V
  • Packaging: Tube
  • Output Type: -
  • Supplier Device Package: 14-CDIP
  • Slew Rate: 0.5V/µs
  • Current - Output / Channel: 40mA
  • detail: General Purpose Amplifier 4 Circuit 14-CDIP
