STP2NK90Z دیتاشیت

STP2NK90Z

مشخصات دیتاشیت

نام دیتاشیت STP2NK90Z
حجم فایل 70.117 کیلوبایت
نوع فایل pdf
تعداد صفحات 18

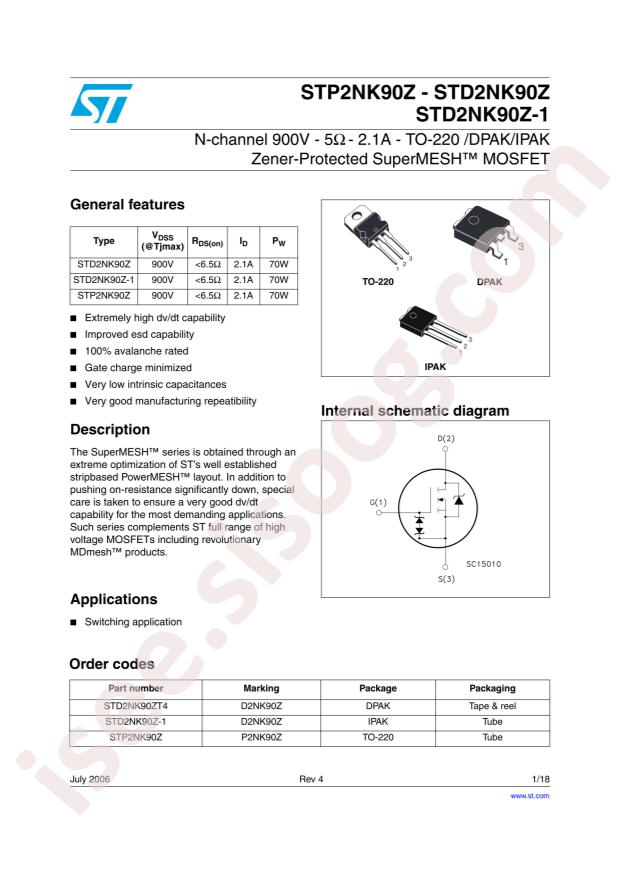

مشاهده دیتاشیت STP2NK90Z

دانلود دیتاشیت

سایر مستندات

STP2NK90Z, STD2NK90Z(1) 24 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STP2NK90Z
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 70W
  • Total Gate Charge (Qg@Vgs): 27nC@10V
  • Drain Source Voltage (Vdss): 900V
  • Input Capacitance (Ciss@Vds): 485pF@25V
  • Continuous Drain Current (Id): 2.1A
  • Gate Threshold Voltage (Vgs(th)@Id): 4.5V@50uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 6.5Ω@10V,1.05A

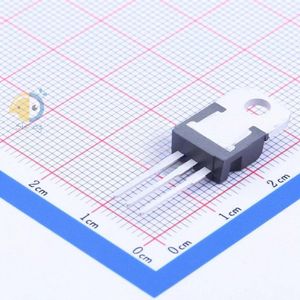

  • Package: TO-220
  • Manufacturer: STMicroelectronics
  • Series: SuperMESH™
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 900V
  • Current - Continuous Drain (Id) @ 25°C: 2.1A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 6.5Ohm @ 1.05A, 10V
  • Vgs(th) (Max) @ Id: 4.5V @ 50µA
  • Gate Charge (Qg) (Max) @ Vgs: 27nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 485pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 70W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220AB
  • Package / Case: TO-220-3
  • Base Part Number: STP2N
  • detail: N-Channel 900V 2.1A (Tc) 70W (Tc) Through Hole TO-220AB
