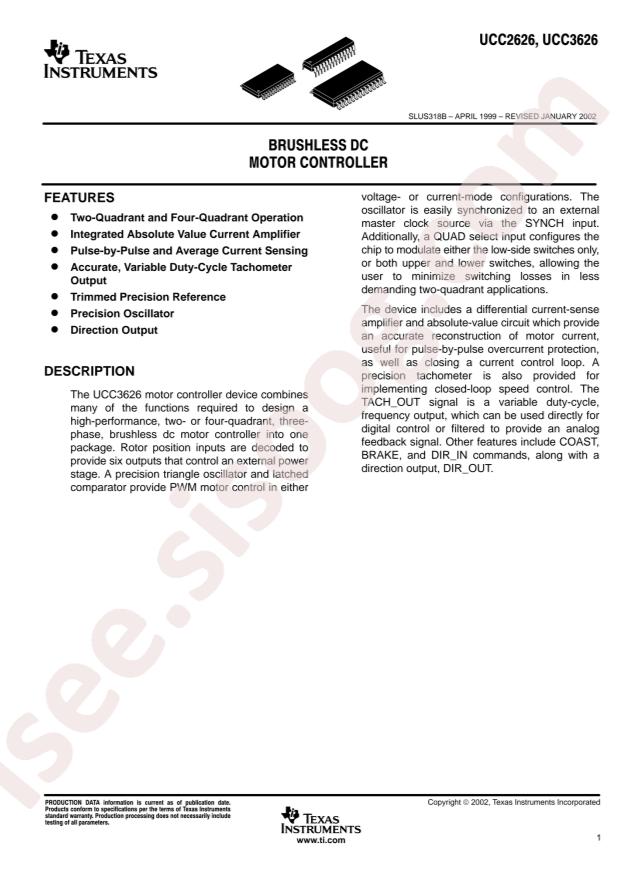

UCC2626PW دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | UCC2626PW |
|---|---|
| حجم فایل | 75.841 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |
دانلود دیتاشیت UCC2626PW |
دانلود دیتاشیت |
|---|
سایر مستندات
UCC2626, UCC3626 23 pages
مشخصات فنی
- RoHS: true
- Type: 无刷直流BLDC
- Category: Power Supply Chip/Motor Driver ICs
- Datasheet: Texas Instruments UCC2626PW
- Interface: PWM
- Output Current: -
- Supply Voltage: 11V~14.5V
- Operating Temperature: -40°C~+85°C@(Ta)
- Package: TSSOP-28
- Manufacturer: Texas Instruments
- Package / Case: 28-TSSOP (0.173", 4.40mm Width)
- Part Status: Active
- Base Part Number: UCC262
- Current - Output: -
- Series: -
- Voltage - Supply: 11V ~ 14.5V
- Technology: -
- Mounting Type: Surface Mount
- Voltage - Load: -
- Motor Type - AC, DC: Brushless DC (BLDC)
- Motor Type - Stepper: -
- Packaging: Tube
- Function: Controller - Commutation, Direction Management
- Output Configuration: Pre-Driver - Half Bridge (3)
- Supplier Device Package: 28-TSSOP
- Step Resolution: -
- Applications: General Purpose
- detail: Motor Driver PWM 28-TSSOP
