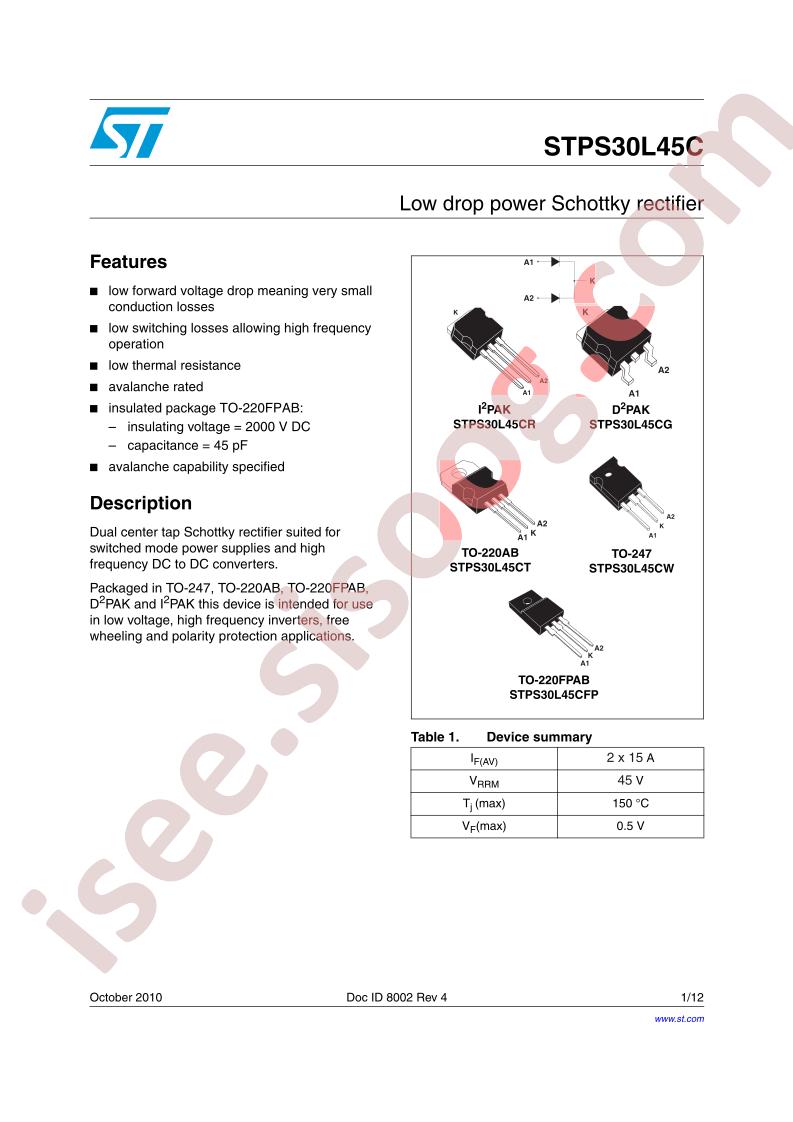

STPS30L45C دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STPS30L45C
|
|
حجم فایل
|
142.391
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
12
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Diode Configuration:
1 Pair Common Cathode
-
Diode Type:
Schottky
-
Voltage - DC Reverse (Vr) (Max):
45V
-
Current - Average Rectified (Io) (per Diode):
15A
-
Voltage - Forward (Vf) (Max) @ If:
550mV @ 15A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
400µA @ 45V
-
Operating Temperature - Junction:
150°C (Max)
-
Mounting Type:
Through Hole
-
Package / Case:
TO-247-3
-
Supplier Device Package:
TO-247-3
-
Base Part Number:
STPS30L45
-
detail:
Diode Array 1 Pair Common Cathode Schottky 45V 15A Through Hole TO-247-3
