- دیتاشیت A5975D
A5975D دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | A5975D |
|---|---|
| حجم فایل | 77.056 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 50 |
دانلود دیتاشیت A5975D |
دانلود دیتاشیت |
|---|
سایر مستندات
A597x(A)D, A6902D Flyer 2 pages

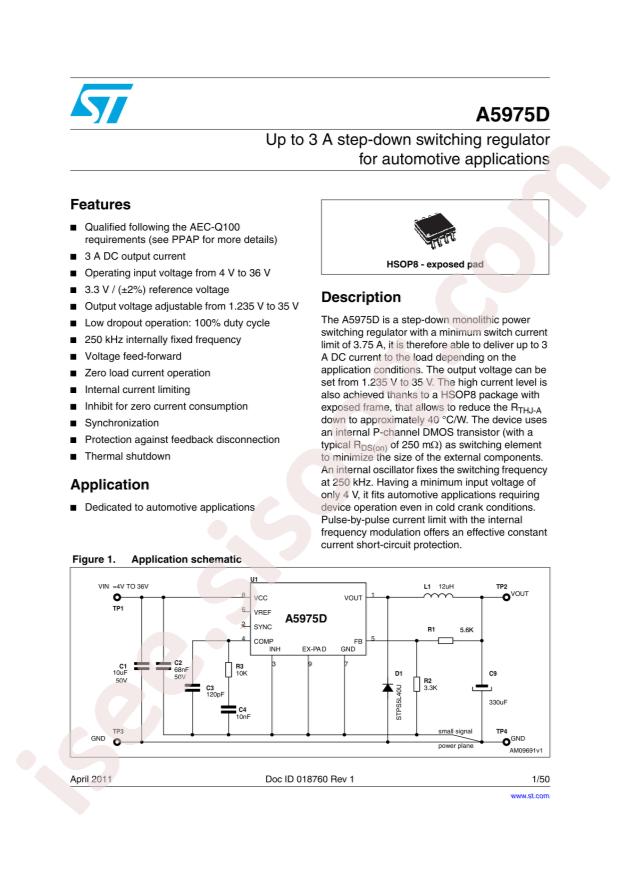

A5975D 50 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: STMicroelectronics A5975D
- Output Type: Adjustable
- Input Voltage: 4V~36V
- Output Voltage: 1.235V~35V
- Number of Outputs: 1
- Switching Frequency: 250kHz
- Output Current (Max): 3A
- Operating Temperature: -40°C~+150°C@(TJ)
- Synchronous Rectification: NO
- Package: HSOP-8-EP
- Manufacturer: STMicroelectronics
- Series: Automotive, AEC-Q100
- Packaging: Tube
- Part Status: Active
- Output Configuration: Positive
- Voltage - Input (Min): 4V
- Voltage - Input (Max): 36V
- Voltage - Output (Min/Fixed): 1.235V
- Voltage - Output (Max): 35V
- Current - Output: 3A
- Frequency - Switching: 250kHz
- Synchronous Rectifier: No
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
- Supplier Device Package: 8-HSOP-EP
- Base Part Number: A5975
- detail: Buck Switching Regulator IC Positive Adjustable 1.235V 1 Output 3A 8-SOIC (0.154", 3.90mm Width) Exposed Pad
