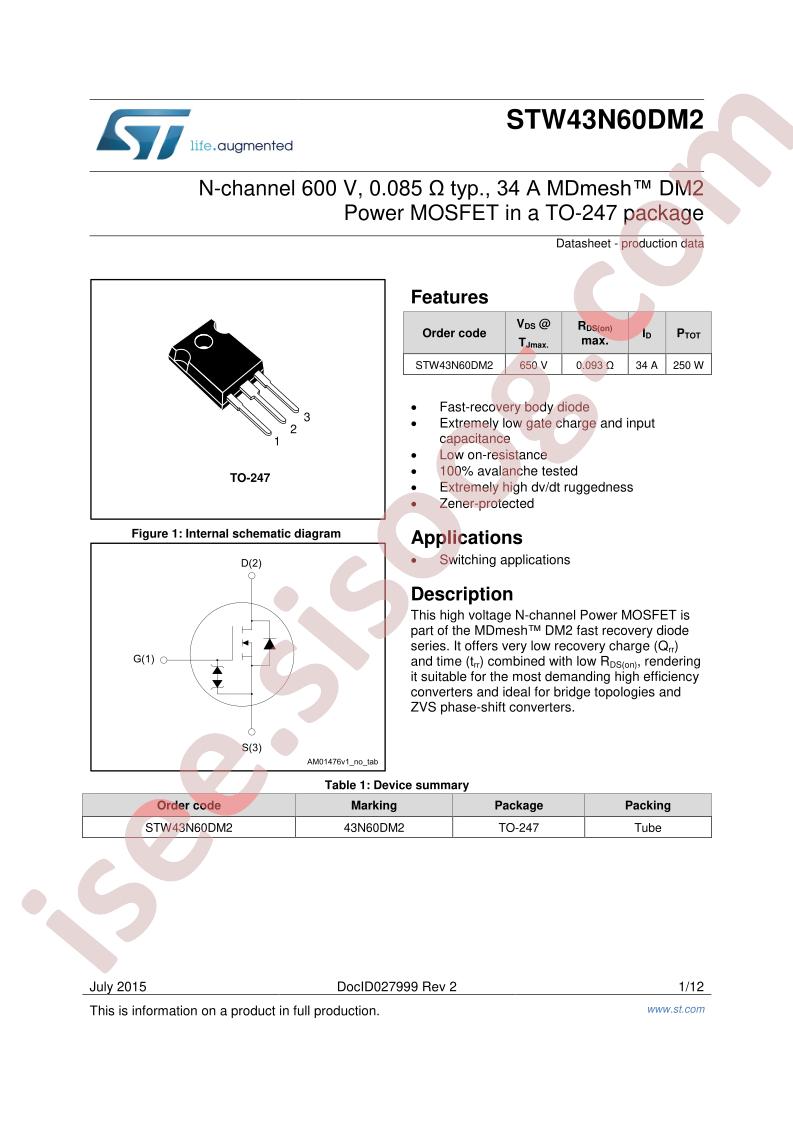

STW43N60DM2 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STW43N60DM2
|
|
حجم فایل
|
315.922
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
12
|
مشخصات فنی
-
Manufacturer:
STMicroelectronics
-
Series:
MDmesh™ DM2
-
Packaging:
Tube
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
600V
-
Current - Continuous Drain (Id) @ 25°C:
34A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
93mOhm @ 17A, 10V
-
Vgs(th) (Max) @ Id:
5V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
56nC @ 10V
-
Vgs (Max):
±25V
-
Input Capacitance (Ciss) (Max) @ Vds:
2500pF @ 100V
-
FET Feature:
-
-
Power Dissipation (Max):
250W (Tc)
-
Operating Temperature:
-55°C ~ 150°C (TJ)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-247
-
Package / Case:
TO-247-3
-
Base Part Number:
STW43N
-
detail:
N-Channel 600V 34A (Tc) 250W (Tc) Through Hole TO-247
