دیتاشیت ESDAVLC8-1BM2
مشخصات دیتاشیت
| نام دیتاشیت | ESDAVLC8-1BM2/1BT2 |
|---|---|
| حجم فایل | 703.455 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 12 |
دانلود دیتاشیت ESDAVLC8-1BM2/1BT2 |

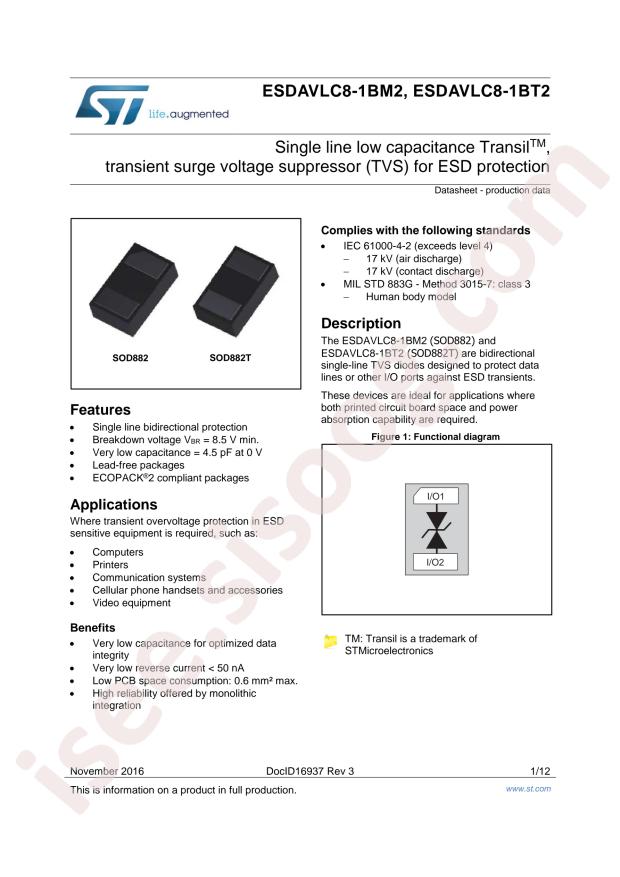

ESDAVLC8-1BM2/1BT2 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
- Datasheet: STMicroelectronics ESDAVLC8-1BM2
- Clamping Voltage@Ipp: 8.5V
- Operating Temperature: -55°C~+150°C@(Tj)
- Breakdown Voltage (VBR): 8.5V
- Peak Pulse Power(Ppp)@8/20us: 30W
- Junction Capacitance(Cj)@1MHz: 4.5pF@1MHz
- Peak Pulse Current(Ipp)@8/20us: -
- Reverse Stand-Off Voltage (Vrwm): 3V
- Package: SOD-882
- Manufacturer: STMicroelectronics
- Series: ESDA, TRANSIL™
- Packaging: Cut Tape (CT)
- Part Status: Active
- Type: Zener
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 3V
- Voltage - Breakdown (Min): 8.5V
- Voltage - Clamping (Max) @ Ipp: -
- Current - Peak Pulse (10/1000µs): -
- Power - Peak Pulse: 30W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 4.5pF @ 1MHz
- Mounting Type: Surface Mount
- Package / Case: SOD-882
- Supplier Device Package: SOD-882
- Base Part Number: ESDAVLC8
- detail: Clamp Ipp Tvs Diode Surface Mount SOD-882
