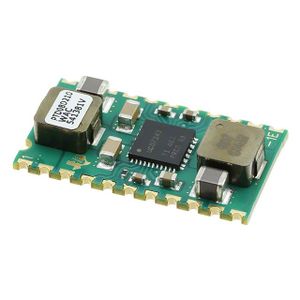

PTD08D210WAC دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت PTD08D210WAC	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/Power Modules

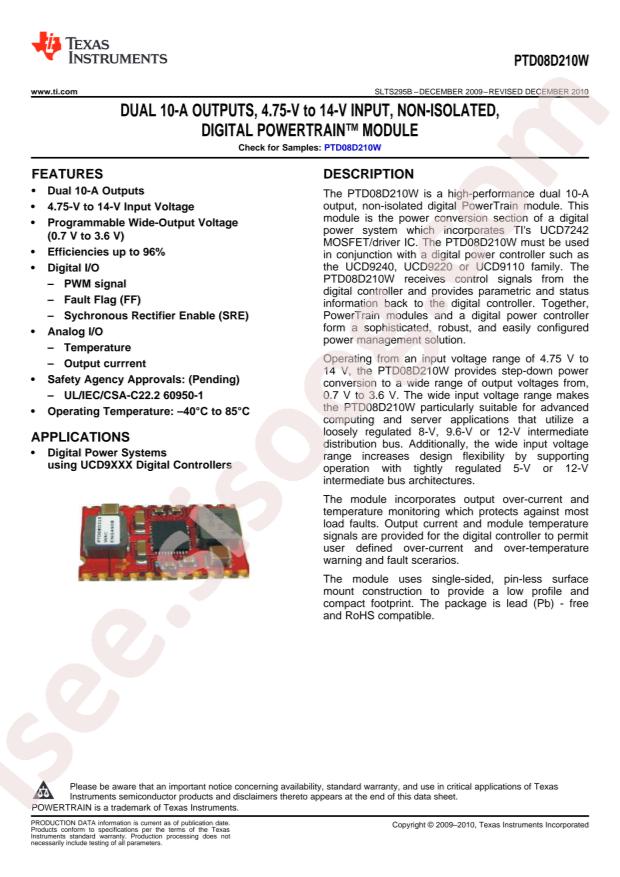

Datasheet: Texas Instruments PTD08D210WAC
Output Channel: 2
Output Voltage: 0.7V~3.6V
Input Voltage(DC): 4.75V~14V
Output Current (Max): 10A
Conversion Efficiency: 96%
Package: SMD-22P
Manufacturer: Texas Instruments
Type: Non-Isolated PoL Module
Efficiency: 96%
Voltage - Output 2: 0.7 ~ 3.6V
Mounting Type: Surface Mount
Package / Case: 22-SMD Module
Series: Powertrain™
Number of Outputs: 2
Voltage - Input (Min): 4.75V
Part Status: Active
Base Part Number: PTD08D
Current - Output (Max): 10A, 10A
Packaging: Tray
Voltage - Output 3: -
Features: OCP, OTP
Voltage - Output 1: 0.7 ~ 3.6V
Size / Dimension: 1.10" L x 0.60" W x 0.24" H (27.9mm x 15.2mm x 6.0mm)
Operating Temperature: -40°C ~ 85°C
Voltage - Input (Max): 14V
Applications: ITE (Commercial)
detail: Non-Isolated PoL Module DC DC Converter 2 Output 0.7 ~ 3.6V 0.7 ~ 3.6V 10A, 10A 4.75V - 14V Input
