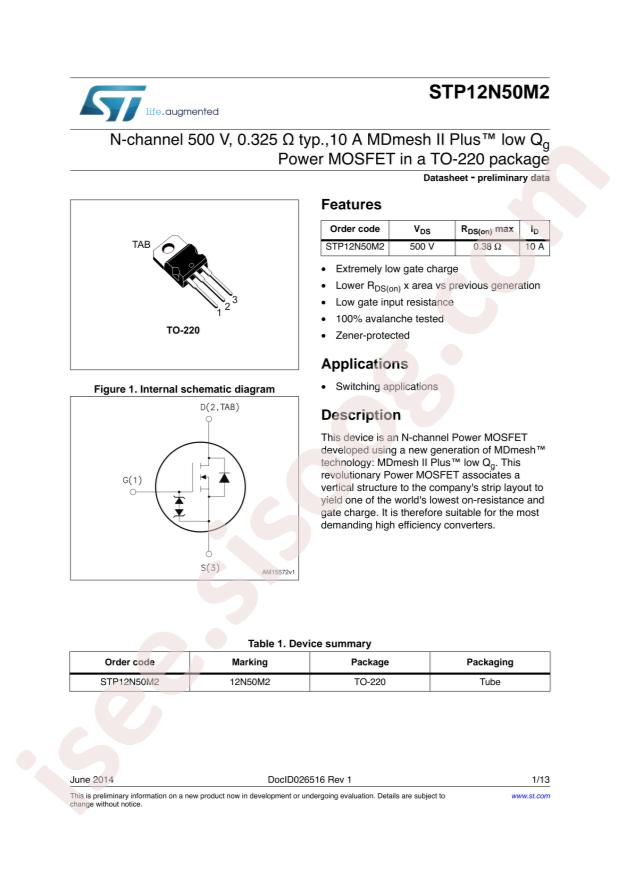

STP12N50M2 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STP12N50M2
|
|
حجم فایل
|
59.437
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
13
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STP12N50M2
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
85W
-
Total Gate Charge (Qg@Vgs):
15nC@10V
-
Drain Source Voltage (Vdss):
500V
-
Input Capacitance (Ciss@Vds):
560pF@100V
-
Continuous Drain Current (Id):
10A
-
Gate Threshold Voltage (Vgs(th)@Id):
3V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
1pF@100V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
325mΩ@10V,5A
-
Package:
TO-220
-
Manufacturer:
STMicroelectronics
-
Series:
MDmesh™ II Plus
-
Packaging:
Tube
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
500V
-
Current - Continuous Drain (Id) @ 25°C:
10A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
380mOhm @ 5A, 10V
-
Vgs(th) (Max) @ Id:
4V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
15nC @ 10V
-
Vgs (Max):
±25V
-
Input Capacitance (Ciss) (Max) @ Vds:
560pF @ 100V
-
FET Feature:
-
-
Power Dissipation (Max):
85W (Tc)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-220
-
Package / Case:
TO-220-3
-
Base Part Number:
STP12
-
detail:
N-Channel 500V 10A (Tc) 85W (Tc) Through Hole TO-220
