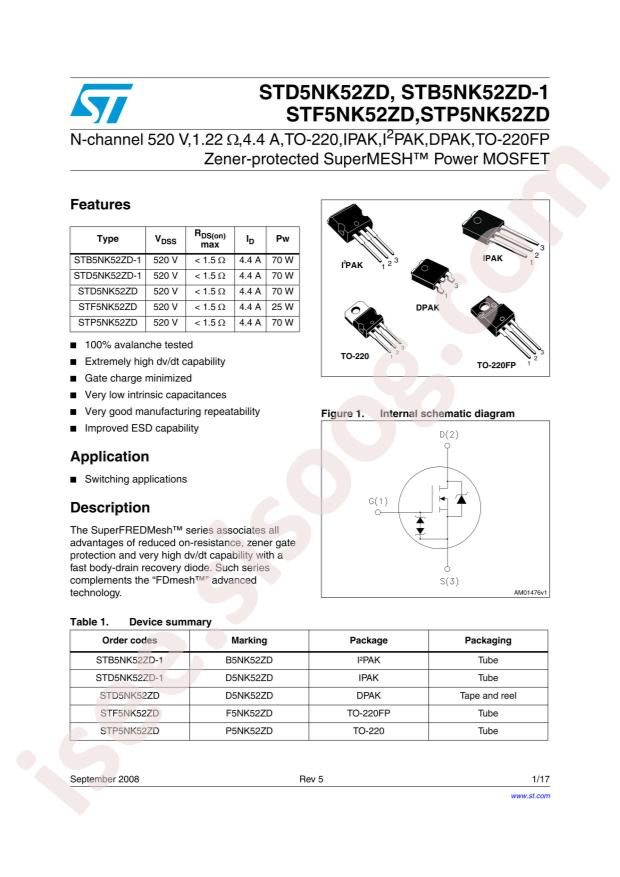

STP5NK52ZD دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STP5NK52ZD
|
|
حجم فایل
|
75.749
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
17
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STP5NK52ZD
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
25W
-
Total Gate Charge (Qg@Vgs):
16.9nC@10V
-
Drain Source Voltage (Vdss):
520V
-
Input Capacitance (Ciss@Vds):
529pF@25V
-
Continuous Drain Current (Id):
4.4A
-
Gate Threshold Voltage (Vgs(th)@Id):
4.5V@50uA
-
Reverse Transfer Capacitance (Crss@Vds):
13.4pF@25V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
1.22Ω@10V,2.2A
-
Package:
TO-220
-
Manufacturer:
STMicroelectronics
-
Series:
SuperMESH™
-
Packaging:
Tube
-
Part Status:
Not For New Designs
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
520V
-
Current - Continuous Drain (Id) @ 25°C:
4.4A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
10V
-
Rds On (Max) @ Id, Vgs:
1.5Ohm @ 2.2A, 10V
-
Vgs(th) (Max) @ Id:
4.5V @ 50µA
-
Gate Charge (Qg) (Max) @ Vgs:
16.9nC @ 10V
-
Vgs (Max):
±30V
-
Input Capacitance (Ciss) (Max) @ Vds:
529pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
25W (Tc)
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-220AB
-
Package / Case:
TO-220-3
-
Base Part Number:
STP5N
-
detail:
N-Channel 520V 4.4A (Tc) 25W (Tc) Through Hole TO-220AB
