دیتاشیت A6986F5VTR

A6986F

مشخصات دیتاشیت

نام دیتاشیت A6986F
حجم فایل 9670.461 کیلوبایت
نوع فایل pdf
تعداد صفحات 78

دانلود دیتاشیت A6986F

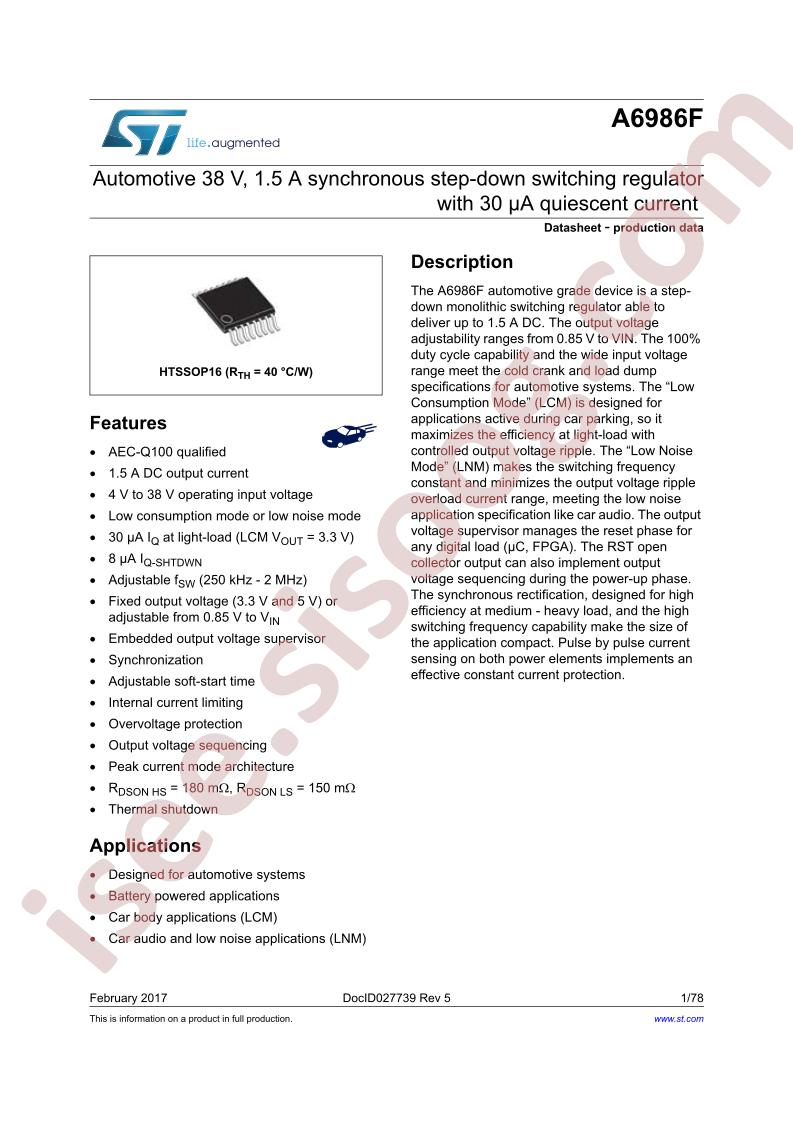

A6986F Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: Automotive, AEC-Q100
  • Part Status: Active
  • Function: Step-Down
  • Output Configuration: Positive
  • Topology: Buck
  • Output Type: Fixed
  • Number of Outputs: 1
  • Voltage - Input (Min): 4V
  • Voltage - Input (Max): 38V
  • Voltage - Output (Min/Fixed): 5V
  • Voltage - Output (Max): -
  • Current - Output: 1.5A
  • Frequency - Switching: 250kHz ~ 2MHz
  • Synchronous Rectifier: Yes
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
  • Supplier Device Package: 16-HTSSOP
  • Base Part Number: A6986
  • detail: Buck Switching Regulator IC Positive Fixed 5V 1 Output 1.5A 16-TSSOP (0.173", 4.40mm Width) Exposed Pad
