STB23N80K5 دیتاشیت

STB23N80K5

مشخصات دیتاشیت

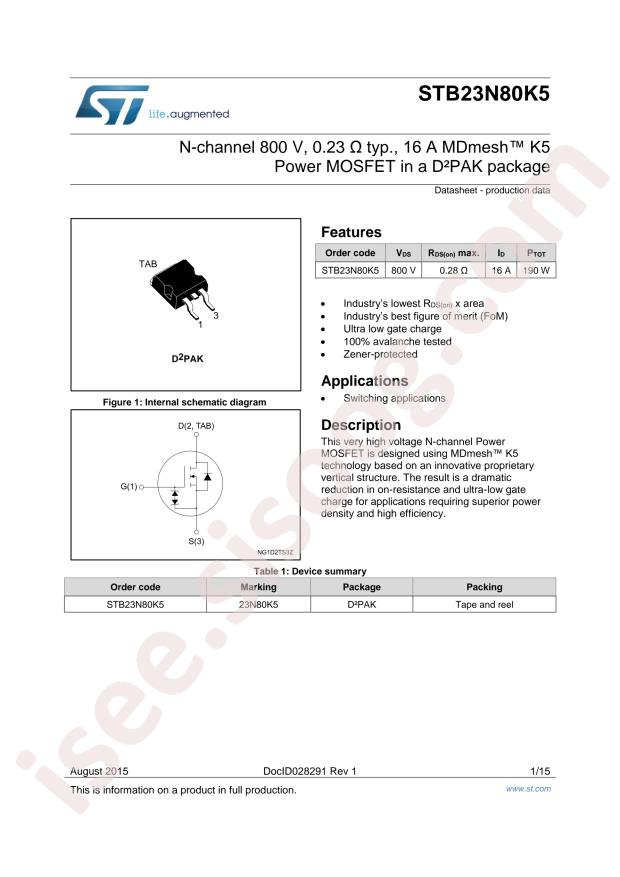

نام دیتاشیت STB23N80K5
حجم فایل 55.762 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

مشاهده دیتاشیت STB23N80K5

دانلود دیتاشیت

سایر مستندات

STB23N80K5 15 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STB23N80K5
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 190W
  • Total Gate Charge (Qg@Vgs): 33nC@10V
  • Drain Source Voltage (Vdss): 800V
  • Input Capacitance (Ciss@Vds): 1000pF@100V
  • Continuous Drain Current (Id): 16A
  • Gate Threshold Voltage (Vgs(th)@Id): 5V@100uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 280mΩ@10V,8A
  • Package: D2PAK
  • Manufacturer: STMicroelectronics
  • Series: MDmesh™ K5
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 800V
  • Current - Continuous Drain (Id) @ 25°C: 16A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 280mOhm @ 8A, 10V
  • Vgs(th) (Max) @ Id: 5V @ 100µA
  • Gate Charge (Qg) (Max) @ Vgs: 33nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 1000pF @ 100V
  • FET Feature: -
  • Power Dissipation (Max): 190W (Tc)
  • Mounting Type: Surface Mount
  • Supplier Device Package: D2PAK
  • Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
  • Base Part Number: STB23N
  • detail: N-Channel 800V 16A (Tc) 190W (Tc) Surface Mount D2PAK
