STGP40V60F دیتاشیت

STGP40V60F

مشخصات دیتاشیت

نام دیتاشیت STGP40V60F
حجم فایل 69.445 کیلوبایت
نوع فایل pdf
تعداد صفحات 24

مشاهده دیتاشیت STGP40V60F

دانلود دیتاشیت

سایر مستندات

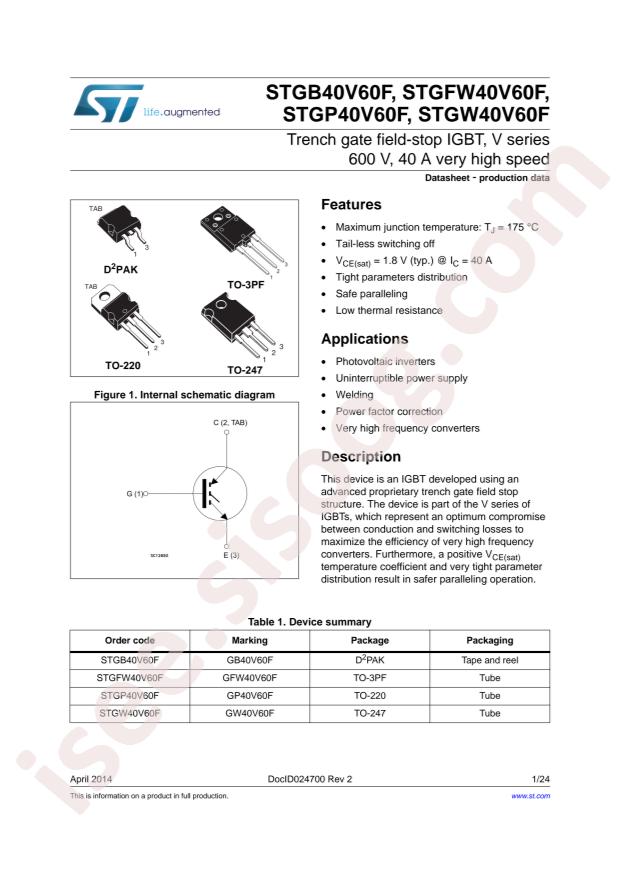

STGx40V60F 24 pages

مشخصات فنی

  • RoHS: true
  • Type: Trench Field Stop
  • Category: Triode/MOS Tube/Transistor/IGBTs
  • Datasheet: STMicroelectronics STGP40V60F
  • Operating Temperature: -55°C~+175°C@(Tj)
  • Collector Current (Ic): 80A
  • Power Dissipation (Pd): 283W
  • Input Capacitance (Cies@Vce): -
  • Turn?on Switching Loss (Eon): 0.456mJ
  • Pulsed Collector Current (Icm): 160A
  • Turn?off Switching Loss (Eoff): 0.411mJ
  • Collector-Emitter Breakdown Voltage (Vces): 600V
  • Gate-Emitter Threshold Voltage (Vge(th)@Ic): -
  • Package: TO-220
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • IGBT Type: Trench Field Stop
  • Voltage - Collector Emitter Breakdown (Max): 600V
  • Current - Collector (Ic) (Max): 80A
  • Current - Collector Pulsed (Icm): 160A
  • Vce(on) (Max) @ Vge, Ic: 2.3V @ 15V, 40A
  • Power - Max: 283W
  • Switching Energy: 456µJ (on), 411µJ (off)
  • Input Type: Standard
  • Gate Charge: 226nC
  • Td (on/off) @ 25°C: 52ns/208ns
  • Test Condition: 400V, 40A, 10Ohm, 15V
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3
  • Supplier Device Package: TO-220
  • Base Part Number: STGP40
  • detail: IGBT Trench Field Stop 600V 80A 283W Through Hole TO-220
