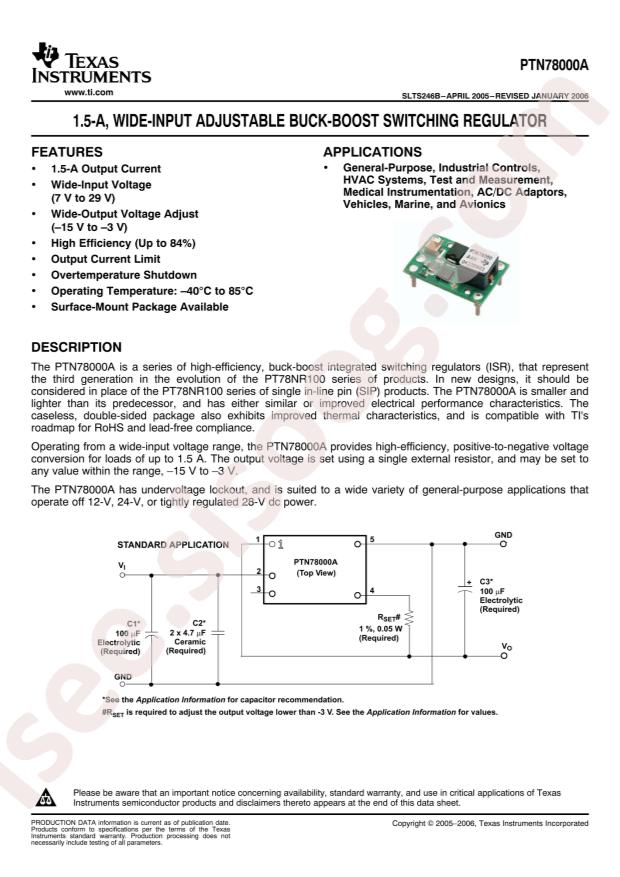

دیتاشیت PTN78000AAH
مشخصات دیتاشیت
| نام دیتاشیت | PTN78000A Series |
|---|---|
| حجم فایل | 502.312 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 19 |

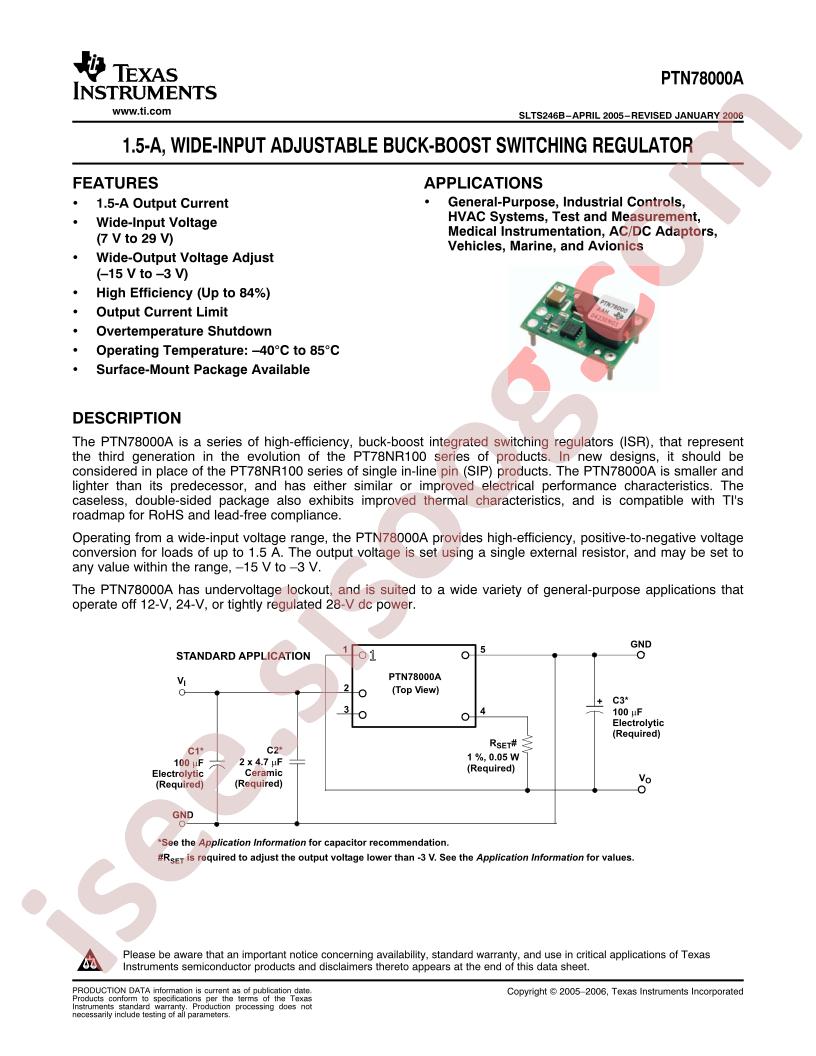

دانلود دیتاشیت PTN78000A Series |
PTN78000A Series Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Power Modules
- Datasheet: Texas Instruments PTN78000AAH
- Package: DIP-5
- Manufacturer: Texas Instruments
- Type: Non-Isolated PoL Module
- Efficiency: 84%
- Voltage - Output 2: -
- Mounting Type: Through Hole
- Package / Case: 5-DIP Module
- Series: PTN78000A
- Number of Outputs: 1
- Voltage - Input (Min): 7V
- Part Status: Active
- Base Part Number: PTN780
- Current - Output (Max): 1.5A
- Packaging: Tray
- Voltage - Output 3: -
- Features: -
- Voltage - Output 1: -15 ~ -3V
- Size / Dimension: 0.75" L x 0.50" W x 0.34" H (19.1mm x 12.7mm x 8.6mm)
- Operating Temperature: -40°C ~ 85°C
- Voltage - Input (Max): 28.7V
- Applications: ITE (Commercial)
- detail: Non-Isolated PoL Module DC DC Converter 1 Output -15 ~ -3V 1.5A 7V - 28.7V Input
