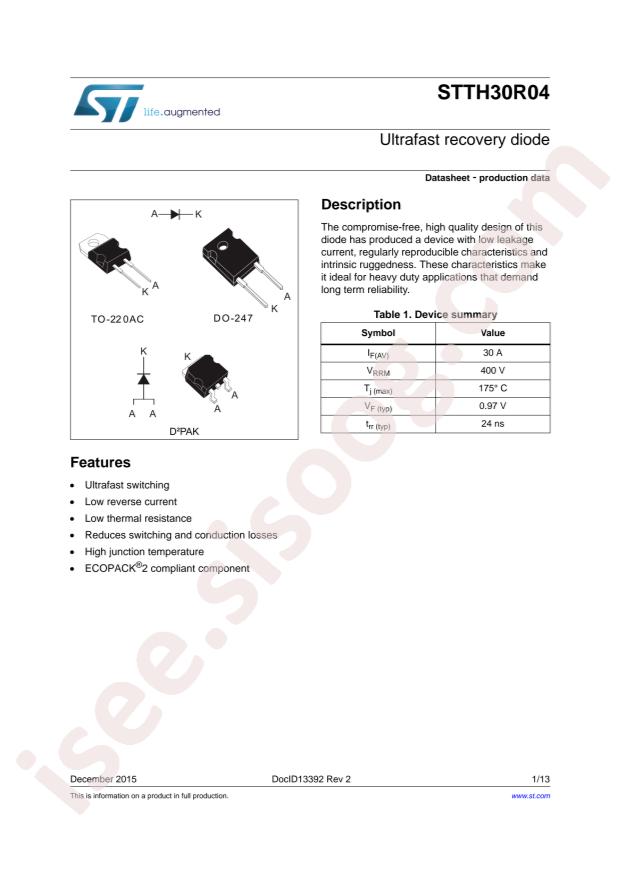

STTH30R04W دیتاشیت

STTH30R04W

مشخصات دیتاشیت

نام دیتاشیت STTH30R04W
حجم فایل 46.99 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

دانلود دیتاشیت STTH30R04W

دانلود دیتاشیت

سایر مستندات

STTH30R04 13 pages

مشخصات فنی

  • RoHS: true
  • Category: Diodes/Diodes - General Purpose
  • Datasheet: STMicroelectronics STTH30R04W
  • Diode Configuration: Single
  • Reverse Voltage (Vr): 400V
  • Forward Voltage (Vf@If): 1.45V@30A
  • Reverse Leakage Current: 15uA@400V
  • Average Rectified Current (Io): 30A
  • Package: DO-247
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Diode Type: Standard
  • Voltage - DC Reverse (Vr) (Max): 400V
  • Current - Average Rectified (Io): 30A
  • Voltage - Forward (Vf) (Max) @ If: 1.45V @ 30A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr): 100ns
  • Current - Reverse Leakage @ Vr: 15µA @ 400V
  • Capacitance @ Vr, F: -
  • Mounting Type: Through Hole
  • Package / Case: DO-247-2 (Straight Leads)
  • Supplier Device Package: DO-247
  • Operating Temperature - Junction: -40°C ~ 175°C
  • Base Part Number: STTH30
  • detail: Diode Standard 400V 30A Through Hole DO-247
