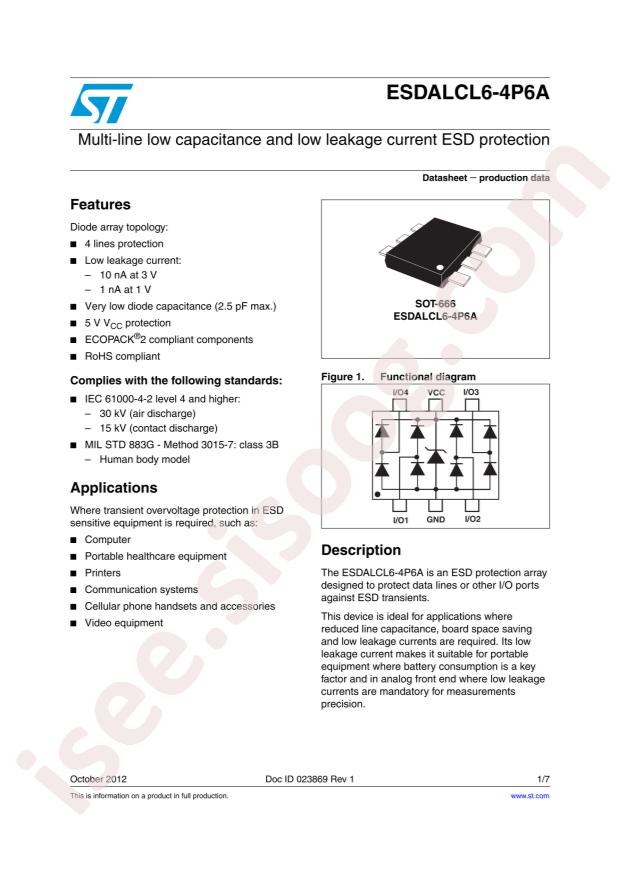

دیتاشیت ESDALCL6-4P6A
مشخصات دیتاشیت
| نام دیتاشیت |
ESDALCL6-4P6A
|
| حجم فایل |
211.41
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
7
|
مشخصات
-
RoHS:
true
-
Category:
TVS/Fuse/Board Level Protection/ESD Protection Devices
-
Datasheet:
STMicroelectronics ESDALCL6-4P6A
-
Number of Lines:
4
-
Clamping Voltage@Ipp:
6V
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Breakdown Voltage (VBR):
6V
-
Peak Pulse Power(Ppp)@8/20us:
90W
-
Junction Capacitance(Cj)@1MHz:
2.5pF@1MHz
-
Peak Pulse Current(Ipp)@8/20us:
-
-
Reverse Stand-Off Voltage (Vrwm):
3V
-
Package:
SOT-563
-
Manufacturer:
STMicroelectronics
-
Series:
ESDA
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Type:
Steering (Rail to Rail)
-
Unidirectional Channels:
4
-
Voltage - Reverse Standoff (Typ):
3V
-
Voltage - Breakdown (Min):
6V
-
Voltage - Clamping (Max) @ Ipp:
-
-
Current - Peak Pulse (10/1000µs):
-
-
Power - Peak Pulse:
90W
-
Power Line Protection:
Yes
-
Applications:
General Purpose
-
Capacitance @ Frequency:
2.5pF @ 1MHz
-
Mounting Type:
Surface Mount
-
Package / Case:
SOT-563, SOT-666
-
Supplier Device Package:
SOT-666
-
Base Part Number:
ESDALCL6
-
detail:
Clamp Ipp Tvs Diode Surface Mount SOT-666
