SCRs, Triacs, AC Switches and A.S.D.™ دیتاشیت

SCRs, Triacs, AC Switches and A.S.D.™

مشخصات دیتاشیت

نام دیتاشیت SCRs, Triacs, AC Switches and A.S.D.™
حجم فایل 1580.585 کیلوبایت
نوع فایل pdf
تعداد صفحات 26

دانلود دیتاشیت SCRs, Triacs, AC Switches and A.S.D.™

دانلود دیتاشیت

سایر مستندات

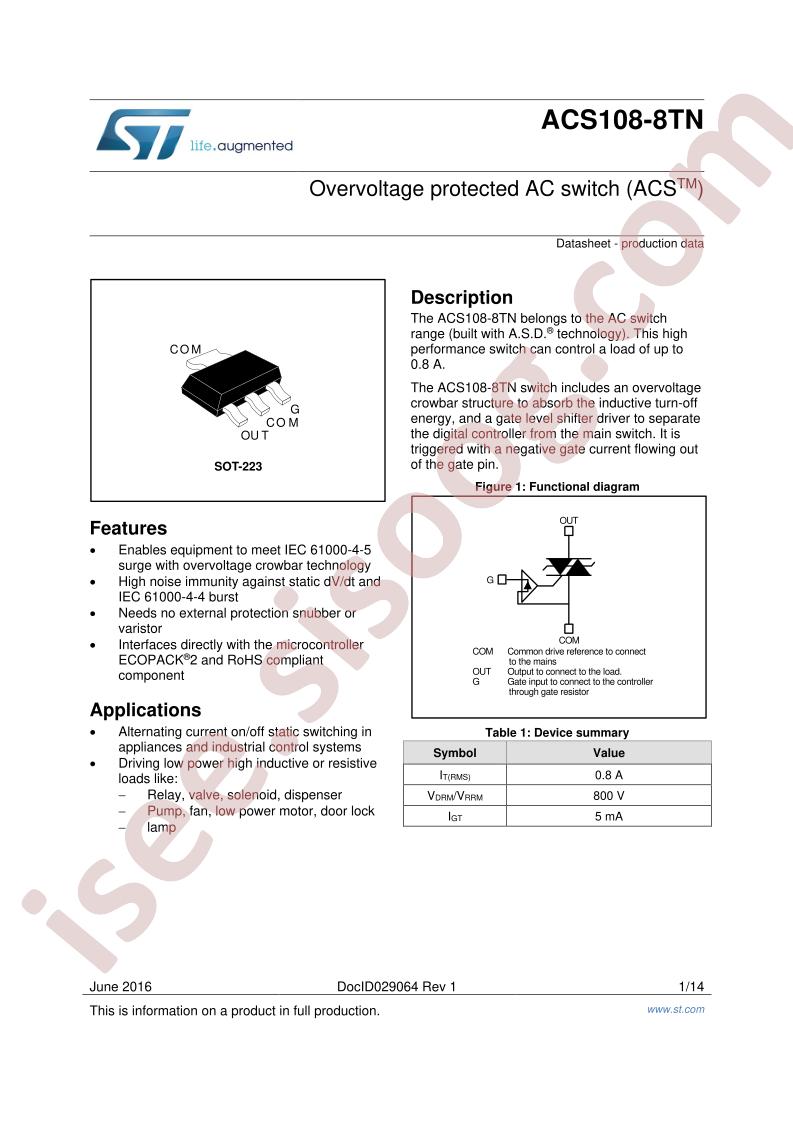

ACS108-8TN Datasheet 14 pages

مشخصات فنی

  • Manufacturer: STMicroelectronics
  • Series: ACS™/A.S.D®
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Triac Type: Logic - Sensitive Gate
  • Voltage - Off State: 800V
  • Current - On State (It (RMS)) (Max): 800mA
  • Voltage - Gate Trigger (Vgt) (Max): 1V
  • Current - Non Rep. Surge 50, 60Hz (Itsm): 13A, 13.7A
  • Current - Gate Trigger (Igt) (Max): 5mA
  • Current - Hold (Ih) (Max): 10mA
  • Configuration: Single
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Mounting Type: Surface Mount
  • Package / Case: TO-261-4, TO-261AA
  • Supplier Device Package: SOT-223
  • Base Part Number: ACS108
  • detail: TRIAC Logic - Sensitive Gate 800V 800mA Surface Mount SOT-223
