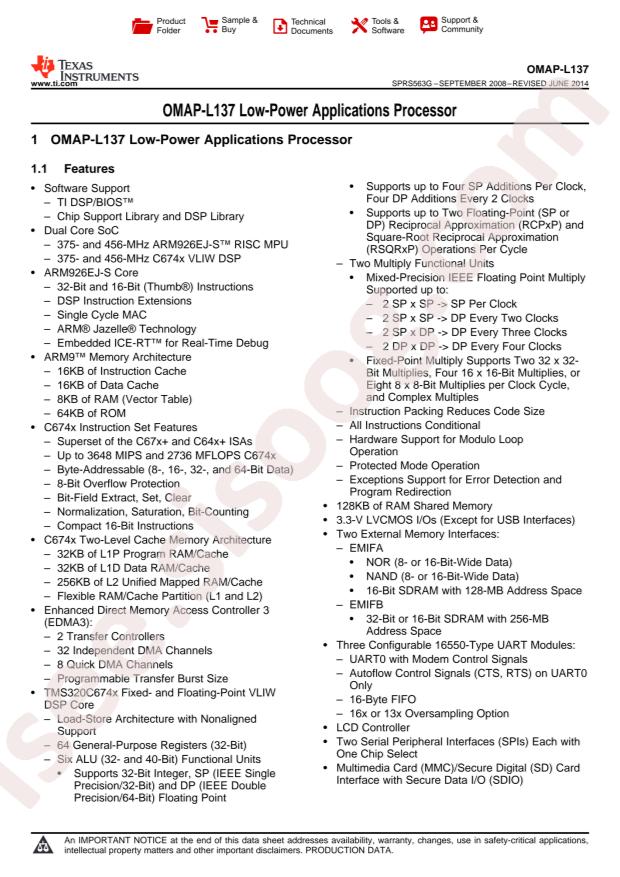

OMAPL137DZKBA3 دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | OMAPL137DZKBA3 |
|---|---|
| حجم فایل | 119.326 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 223 |
دانلود دیتاشیت OMAPL137DZKBA3 |
دانلود دیتاشیت |
|---|
سایر مستندات
مشخصات فنی
- CAN: -
- I2C: -
- I2S: -
- SPI: -
- RoHS: true
- EEPROM: -
- CPU Core: ARMOther series
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: -
- Watchdog: -
- ADC (Bit): -
- DAC (Bit): -
- Datasheet: Texas Instruments OMAPL137DZKBA3
- PWM (Bit): -
- 8Bit Timer: -
- LCD Module: Yes
- UART/USART: -
- 16Bit Timer: -
- 32Bit Timer: -
- Real-Time Clock: -
- CPU Maximum Speed: 375MHz
- GPIO Ports Number: -
- Low-Voltage Detect: -
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: -
- Peripheral/Function: Ethernet protocol stack
- Program Memory Type: -
- Direct Memory Access: -
- Program Storage Size: -
- Universal Serial Bus: Yes
- communication protocol: 以太网协议
- Operating Voltage Range: -
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+105°C
- Secure Digital Input and Output: -
- Package: BGA-256
- Manufacturer: Texas Instruments
- Display & Interface Controllers: LCD
- Part Status: Active
- Voltage - I/O: 1.8V, 3.3V
- SATA: -
- Co-Processors/DSP: Signal Processing; C674x, System Control; CP15
- Series: OMAP-L1x
- Base Part Number: OMAPL137
- Ethernet: 10/100Mbps (1)
- USB: USB 1.1 + PHY (1), USB 2.0 + PHY (1)
- Graphics Acceleration: No
- Security Features: -
- Additional Interfaces: HPI, I²C, McASP, MMC/SD, SPI, UART
- Speed: 375MHz
- Package / Case: 256-BGA
- Packaging: Tray
- Core Processor: ARM926EJ-S
- Supplier Device Package: 256-BGA (17x17)
- RAM Controllers: SDRAM
- Operating Temperature: -40°C ~ 105°C (TJ)
- Number of Cores/Bus Width: 1 Core, 32-Bit
- detail: ARM926EJ-S Microprocessor IC OMAP-L1x 1 Core, 32-Bit 375MHz 256-BGA (17x17)
