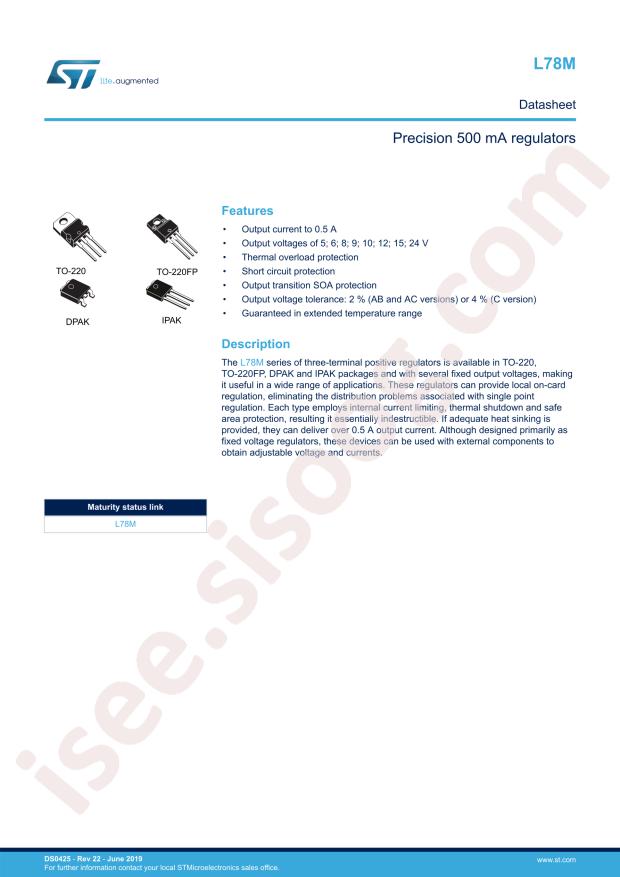

L78M09CV 数据手册
其他文档
L78MxxC 45 pages
技术规格
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: STMicroelectronics L78M09CV
- Output Type: Fixed
- Output Current: 500mA
- Output Voltage: 9V
- Dropout Voltage: -
- Output Polarity: Positive
- Number of Outputs: 1
- Maximum Input Voltage: 35V
- Operating Temperature: 0°C~+125°C
- Quiescent Current (Ground Current): 6mA
- Power Supply Rejection Ratio (PSRR): 56dB@(120Hz)
- Package: TO-220
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Tube
- Part Status: Active
- Output Configuration: Positive
- Number of Regulators: 1
- Voltage - Input (Max): 35V
- Voltage - Output (Min/Fixed): 9V
- Voltage - Output (Max): -
- Voltage Dropout (Max): -
- Current - Output: 500mA
- Current - Quiescent (Iq): 6mA
- PSRR: 56dB (120Hz)
- Control Features: -
- Protection Features: Over Current, Over Temperature, Short Circuit
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220AB
- Base Part Number: L78M09
- detail: Linear Voltage Regulator IC 1 Output 500mA TO-220AB
