BUL742C دیتاشیت

BUL742C

مشخصات دیتاشیت

نام دیتاشیت BUL742C
حجم فایل 72.173 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

مشاهده دیتاشیت BUL742C

دانلود دیتاشیت

سایر مستندات

BUL(B)742C 14 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Datasheet: STMicroelectronics BUL742C
  • Transistor Type: NPN
  • Operating Temperature: +150°C@(Tj)
  • Collector Current (Ic): 4A
  • Power Dissipation (Pd): 70W
  • Transition Frequency (fT): -
  • DC Current Gain (hFE@Ic,Vce): 25@800mA,3V
  • Collector Cut-Off Current (Icbo): 250uA
  • Collector-Emitter Breakdown Voltage (Vceo): 400V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 1.5V@3.5A,1A

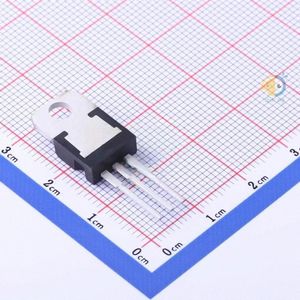

  • Package: TO-220
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Current - Collector (Ic) (Max): 4A
  • Voltage - Collector Emitter Breakdown (Max): 400V
  • Vce Saturation (Max) @ Ib, Ic: 1.5V @ 1A, 3.5A
  • Current - Collector Cutoff (Max): 250µA
  • DC Current Gain (hFE) (Min) @ Ic, Vce: 25 @ 800mA, 3V
  • Power - Max: 70W
  • Frequency - Transition: -
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3
  • Supplier Device Package: TO-220AB
  • Base Part Number: BUL742
  • detail: Bipolar (BJT) Transistor NPN 400V 4A 70W Through Hole TO-220AB
