دیتاشیت STLA02PUR

STLA02

مشخصات دیتاشیت

نام دیتاشیت STLA02
حجم فایل 743.862 کیلوبایت
نوع فایل pdf
تعداد صفحات 23

دانلود دیتاشیت STLA02

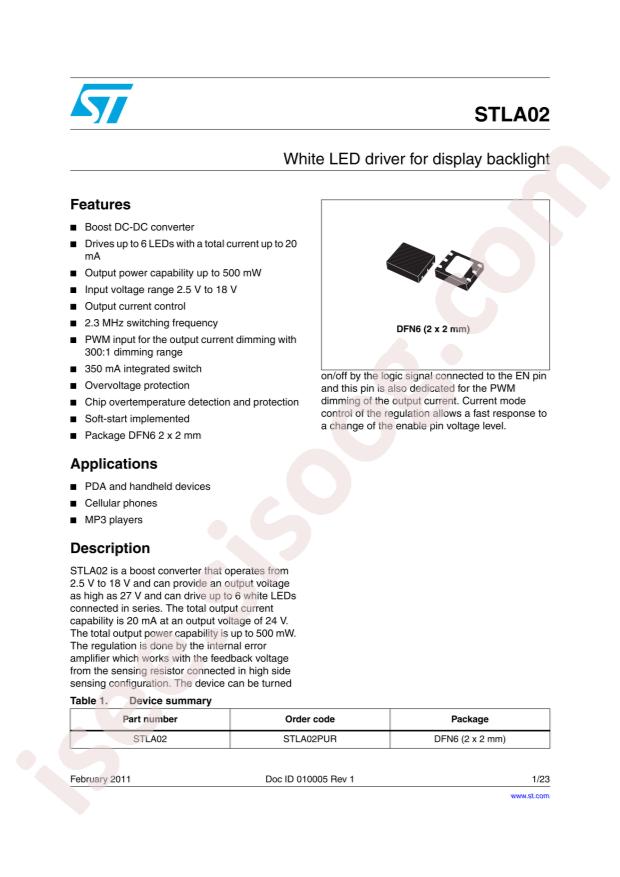

STLA02 Datasheet

مشخصات

  • RoHS: true
  • Type: DC-DCVoltage Stabilizer
  • Dimming: PWM
  • Category: Nixie Tube Driver/LED Driver/LED Drivers
  • Channels: 1
  • Topology: boost converter
  • Datasheet: STMicroelectronics STLA02PUR
  • Input Voltage: 2.5V~18V
  • Output Current: 20mA
  • Output Voltage: 27V
  • Switch Frequency: 2MHz
  • Operating temperature: -40°C~+85°C
  • Package: DFN-6(2x2)
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Internal Switch(s): Yes
  • Number of Outputs: 1
  • Voltage - Supply (Min): 2.5V
  • Voltage - Supply (Max): 18V
  • Voltage - Output: 27V
  • Current - Output / Channel: 20mA
  • Frequency: 2MHz
  • Applications: Backlight
  • Mounting Type: Surface Mount
  • Package / Case: 6-WFDFN Exposed Pad
  • Supplier Device Package: 6-DFN-EP (2x2)
  • Base Part Number: STLA02
  • detail: LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) PWM Dimming 20mA 6-DFN-EP (2x2)
