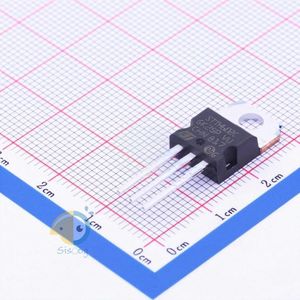

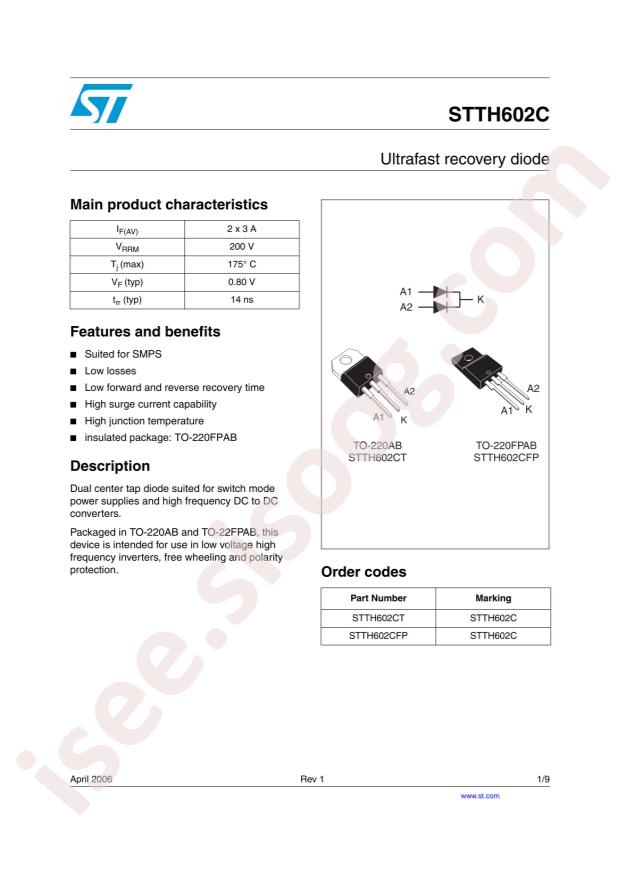

STTH602CT دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STTH602CT
|
|
حجم فایل
|
49.659
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
9
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/Diodes - Fast Recovery Rectifiers
-
Datasheet:
STMicroelectronics STTH602CT
-
Diode Configuration:
Dual Common Cathode
-
Reverse Voltage (Vr):
200V
-
Operating Temperature:
+175°C@(Tj)
-
Forward Voltage (Vf@If):
1.1V@6A
-
Reverse Leakage Current:
3uA@200V
-
Reverse Recovery Time (trr):
21ns
-
Average Rectified Current (Io):
3A
-
Package:
TO-220
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Diode Type:
Standard
-
Voltage - DC Reverse (Vr) (Max):
200V
-
Current - Average Rectified (Io) (per Diode):
3A
-
Voltage - Forward (Vf) (Max) @ If:
1.1V @ 3A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
3µA @ 200V
-
Operating Temperature - Junction:
175°C (Max)
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3
-
Supplier Device Package:
TO-220AB
-
Base Part Number:
STTH602
-
detail:
Diode Array 1 Pair Common Cathode Standard 200V 3A Through Hole TO-220-3
