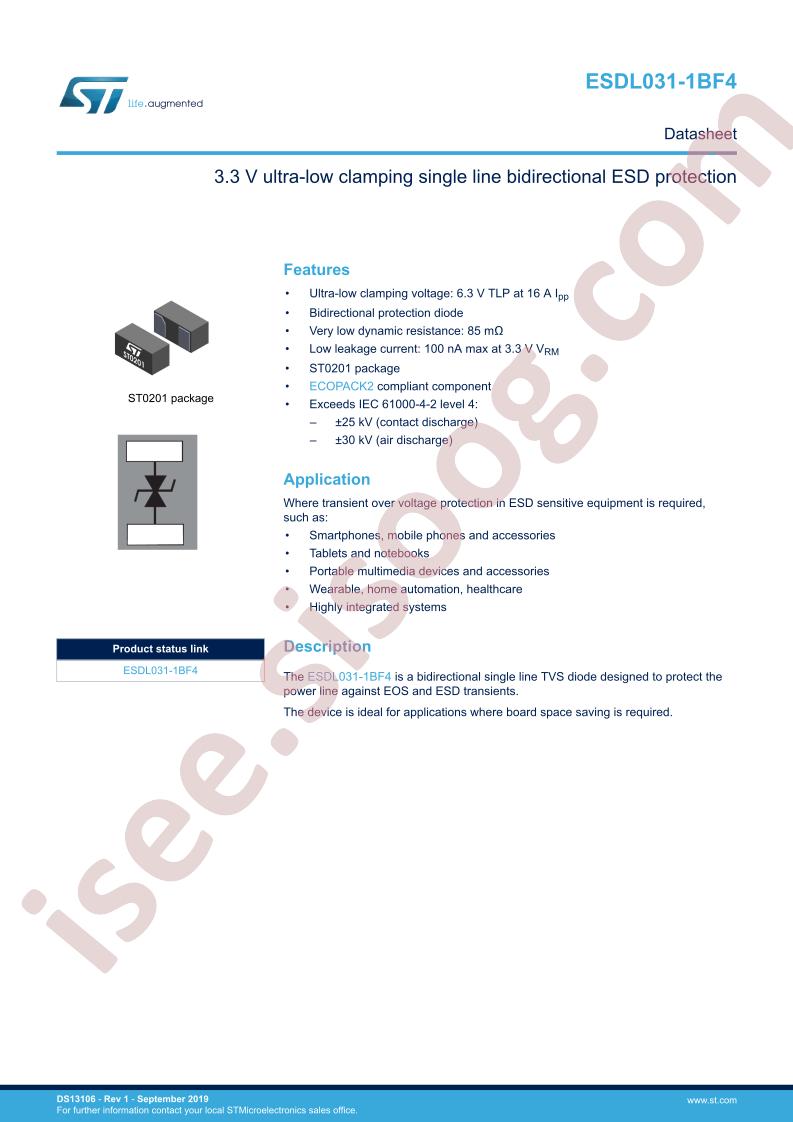

ESDL031-1BF4 数据手册
其他文档
未找到其他文档！
技术规格
- Manufacturer: STMicroelectronics
- Series: ESDL
- Packaging: Cut Tape (CT)
- Part Status: Active
- Type: Zener
- Bidirectional Channels: 1
- Voltage - Reverse Standoff (Typ): 3.3V (Max)
- Voltage - Breakdown (Min): 5V
- Voltage - Clamping (Max) @ Ipp: 7V
- Current - Peak Pulse (10/1000µs): 7A (8/20µs)
- Power - Peak Pulse: 45W
- Power Line Protection: No
- Applications: Automotive
- Capacitance @ Frequency: 10pF @ 1MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 0201 (0603 Metric)
- Supplier Device Package: ST0201
- detail: 7V Clamp 7A (8/20µs) Ipp Tvs Diode Surface Mount ST0201
