دیتاشیت ESDCAN04-2BWY
مشخصات دیتاشیت
| نام دیتاشیت | ESDCANxx-2BWY Datasheet |
|---|---|
| حجم فایل | 1008.86 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 14 |

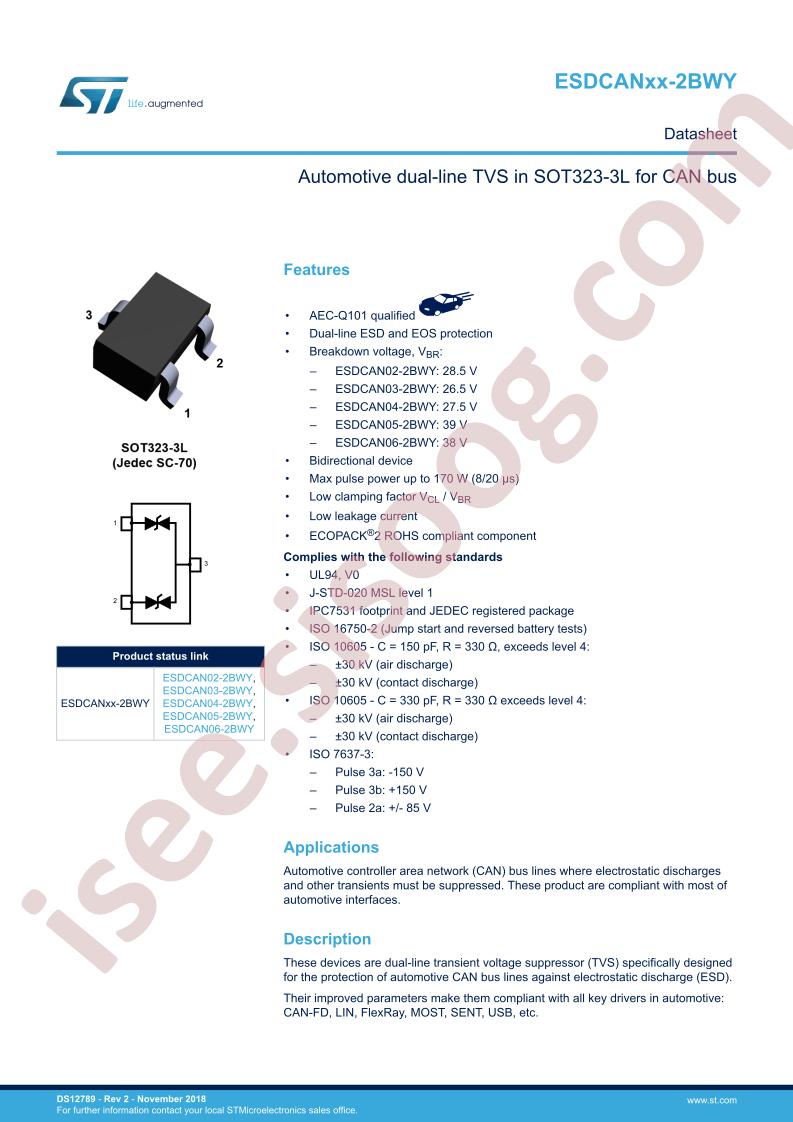

دانلود دیتاشیت ESDCANxx-2BWY Datasheet |
ESDCANxx-2BWY Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
- Datasheet: STMicroelectronics ESDCAN04-2BWY
- Number of Lines: 2
- Clamping Voltage@Ipp: 43V
- Operating Temperature: -55°C~+175°C@(Tj)
- Breakdown Voltage (VBR): 27.5V
- Peak Pulse Power(Ppp)@8/20us: 170W
- Junction Capacitance(Cj)@1MHz: -
- Peak Pulse Current(Ipp)@8/20us: 3.7A@(8/20us)
- Reverse Stand-Off Voltage (Vrwm): 25.5V
- Package: SOT-323(SC-70)
- Manufacturer: STMicroelectronics
- Series: Automotive, AEC-Q101
- Packaging: Cut Tape (CT)
- Part Status: Active
- Type: Zener
- Bidirectional Channels: 2
- Voltage - Reverse Standoff (Typ): 25.5V
- Voltage - Breakdown (Min): 27.5V
- Voltage - Clamping (Max) @ Ipp: 43V
- Current - Peak Pulse (10/1000µs): 3.7A (8/20µs)
- Power - Peak Pulse: 170W
- Power Line Protection: No
- Applications: Automotive, CAN
- Capacitance @ Frequency: -
- Mounting Type: Surface Mount
- Package / Case: SC-70, SOT-323
- Supplier Device Package: SOT-323-3
- Base Part Number: ESDCAN04
- detail: 43V Clamp 3.7A (8/20µs) Ipp Tvs Diode Surface Mount SOT-323-3
