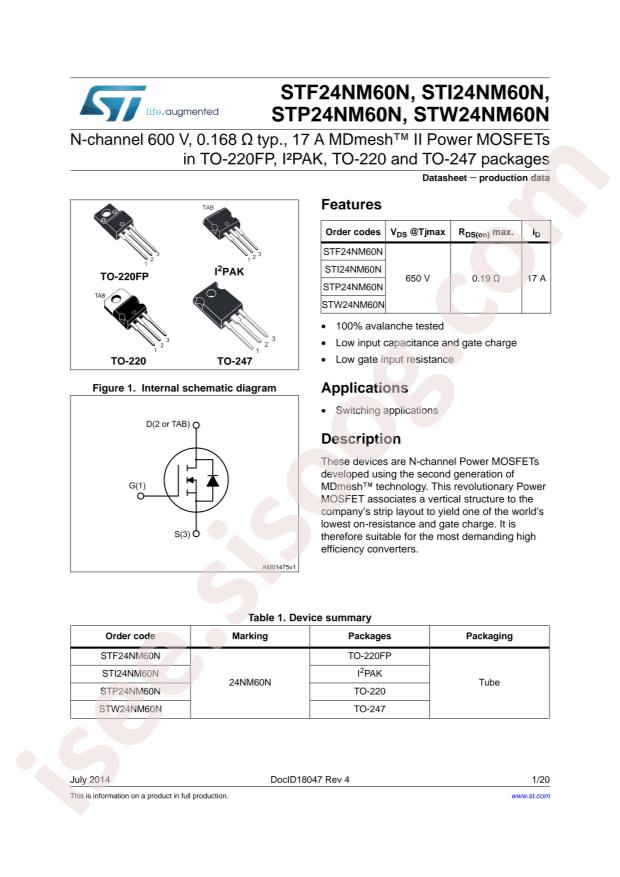

STW24NM60N دیتاشیت

STW24NM60N

مشخصات دیتاشیت

نام دیتاشیت STW24NM60N
حجم فایل 69.901 کیلوبایت
نوع فایل pdf
تعداد صفحات 20

دانلود دیتاشیت STW24NM60N

دانلود دیتاشیت

سایر مستندات

STF24NM60N, STP24NM60N 20 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STW24NM60N
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 125W
  • Total Gate Charge (Qg@Vgs): 46nC@10V
  • Drain Source Voltage (Vdss): 600V
  • Input Capacitance (Ciss@Vds): 1400pF@50V
  • Continuous Drain Current (Id): 17A
  • Gate Threshold Voltage (Vgs(th)@Id): 4V@250uA
  • Reverse Transfer Capacitance (Crss@Vds): 3.2pF@50V
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 168mΩ@10V,8A
  • Package: TO-247
  • Manufacturer: STMicroelectronics
  • Series: MDmesh™ II
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 600V
  • Current - Continuous Drain (Id) @ 25°C: 17A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 190mOhm @ 8A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 46nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 1400pF @ 50V
  • FET Feature: -
  • Power Dissipation (Max): 125W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-247
  • Package / Case: TO-247-3
  • Base Part Number: STW24N
  • detail: N-Channel 600V 17A (Tc) 125W (Tc) Through Hole TO-247
