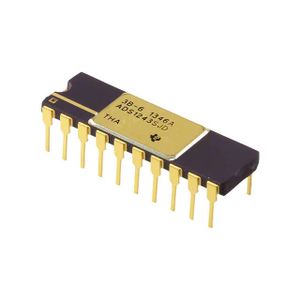

ADS1243SJD دیتاشیت

ADS1243SJD

مشخصات دیتاشیت

نام دیتاشیت ADS1243SJD
حجم فایل 76.862 کیلوبایت
نوع فایل pdf
تعداد صفحات 40

مشاهده دیتاشیت ADS1243SJD

دانلود دیتاشیت

سایر مستندات

ADS1243-HT 40 pages

مشخصات فنی

  • RoHS: true
  • Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
  • Datasheet: Texas Instruments ADS1243SJD
  • Interface: SPI
  • resolution: 24Bit
  • Supply Voltage: 2.7V~3.3V;5V
  • number of channels: 8
  • sampling frequency: 15Hz
  • Operating Temperature: -55°C~+210°C
  • Package: CDIP-20-SB
  • Manufacturer: Texas Instruments
  • Mounting Type: Through Hole
  • Voltage - Supply, Digital: 2.7V ~ 5.25V
  • Input Type: Differential, Single Ended
  • Architecture: Sigma-Delta
  • Packaging: Tube
  • Number of Bits: 24
  • Data Interface: SPI
  • Number of Inputs: 8
  • Supplier Device Package: 20-CDIP
  • Ratio - S/H:ADC: -
  • Sampling Rate (Per Second): 15
  • Number of A/D Converters: 1
  • Part Status: Active
  • Package / Case: 20-CDIP (0.300", 7.62mm)
  • Voltage - Supply, Analog: 2.7V ~ 3.3V, 5V
  • Reference Type: External
  • Base Part Number: ADS1243
  • Series: -
  • Features: PGA
  • Configuration: MUX-PGA-ADC
  • detail: 24 Bit Analog to Digital Converter 8 Input 1 Sigma-Delta 20-CDIP
