- TDA75610SEP-HLX

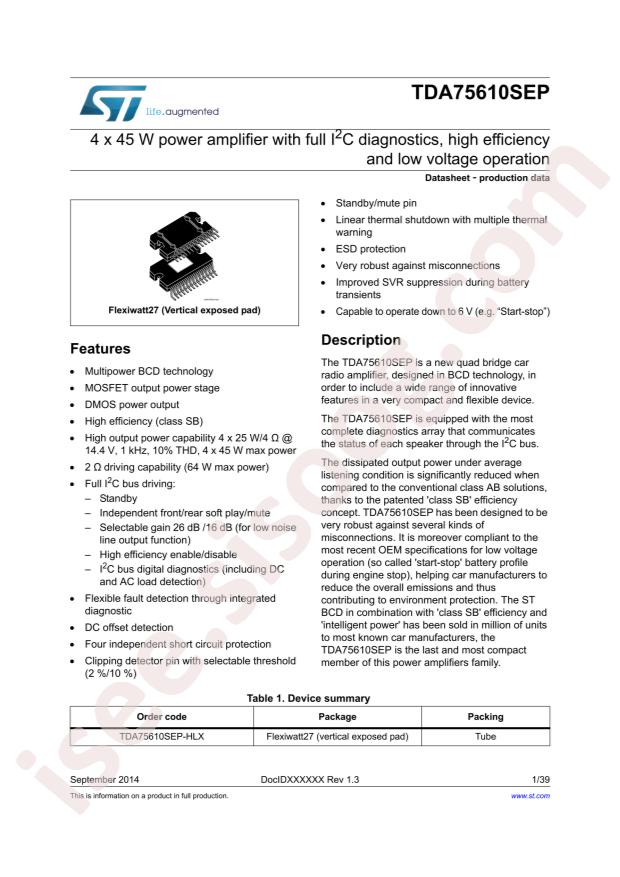

TDA75610SEP-HLX Datasheet
Datasheet specifications
| Datasheet's name | TDA75610SEP-HLX |
|---|---|
| File size | 88.014 KB |
| File type | |
| Number of pages | 39 |
Download Datasheet TDA75610SEP-HLX |
Download Datasheet |
|---|
Other documentations
TDA7561 27 pages
Technical specifications
- RoHS: true
- Category: Operational Amplifier/Comparator/Audio Power OpAmps
- Datasheet: STMicroelectronics TDA75610SEP-HLX
- Output Power: 45Wx4@4Ω
- Supply Voltage: 6V~18V
- Speaker Channels: 4
- Operating Temperature: -40°C~+105°C
- Type of Power Amplifier: Class AB
- Package: FLEXIWATT-27
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Tube
- Part Status: Active
- Type: Class AB
- Output Type: 4-Channel (Quad)
- Max Output Power x Channels @ Load: 60W x 4 @ 2Ohm
- Voltage - Supply: 8V ~ 18V
- Features: I²C, Mute, Short-Circuit and Thermal Protection, Standby
- Mounting Type: Through Hole
- Supplier Device Package: 25-Flexiwatt (Vertical)
- Package / Case: 25-Flexiwatt (Formed Leads)
- Base Part Number: TDA7561
- detail: Amplifier IC 4-Channel (Quad) Class AB 25-Flexiwatt (Vertical)
