دیتاشیت LMZ14203EXTTZ/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LMZ14203EXT |
|---|---|
| حجم فایل | 6471.455 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 31 |
دانلود دیتاشیت LMZ14203EXT |

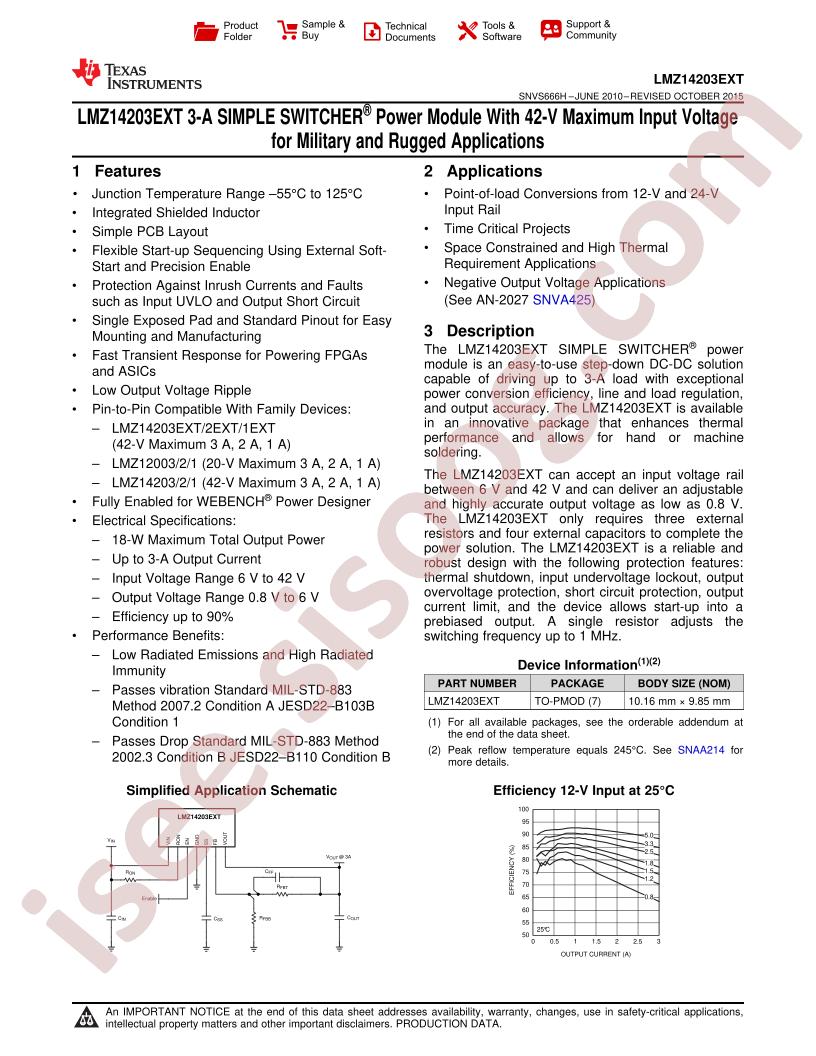

LMZ14203EXT Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Power Modules
- Datasheet: Texas Instruments LMZ14203EXTTZ/NOPB
- Output Channel: 1
- Output Voltage: 0.8V~6V
- Input Voltage(DC): 6V~42V
- Output Current (Max): 3A
- Conversion Efficiency: 90%
- Package: TO-263-7
- Manufacturer: Texas Instruments
- Type: Non-Isolated PoL Module
- Efficiency: 90%
- Voltage - Output 2: -
- Mounting Type: Surface Mount
- Package / Case: TO-PMOD-7, Power Module
- Series: SIMPLE SWITCHER®
- Number of Outputs: 1
- Voltage - Input (Min): 6V
- Part Status: Active
- Base Part Number: LMZ14203
- Current - Output (Max): 3A
- Control Features: Enable, Active High
- Packaging: Cut Tape (CT)
- Voltage - Output 3: -
- Features: OTP, OVP, SCP, UVLO
- Voltage - Output 1: 0.8 ~ 6V
- Size / Dimension: 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm)
- Operating Temperature: -55°C ~ 125°C
- Voltage - Input (Max): 42V
- Applications: ITE (Commercial)
- detail: Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 6V 3A 6V - 42V Input
