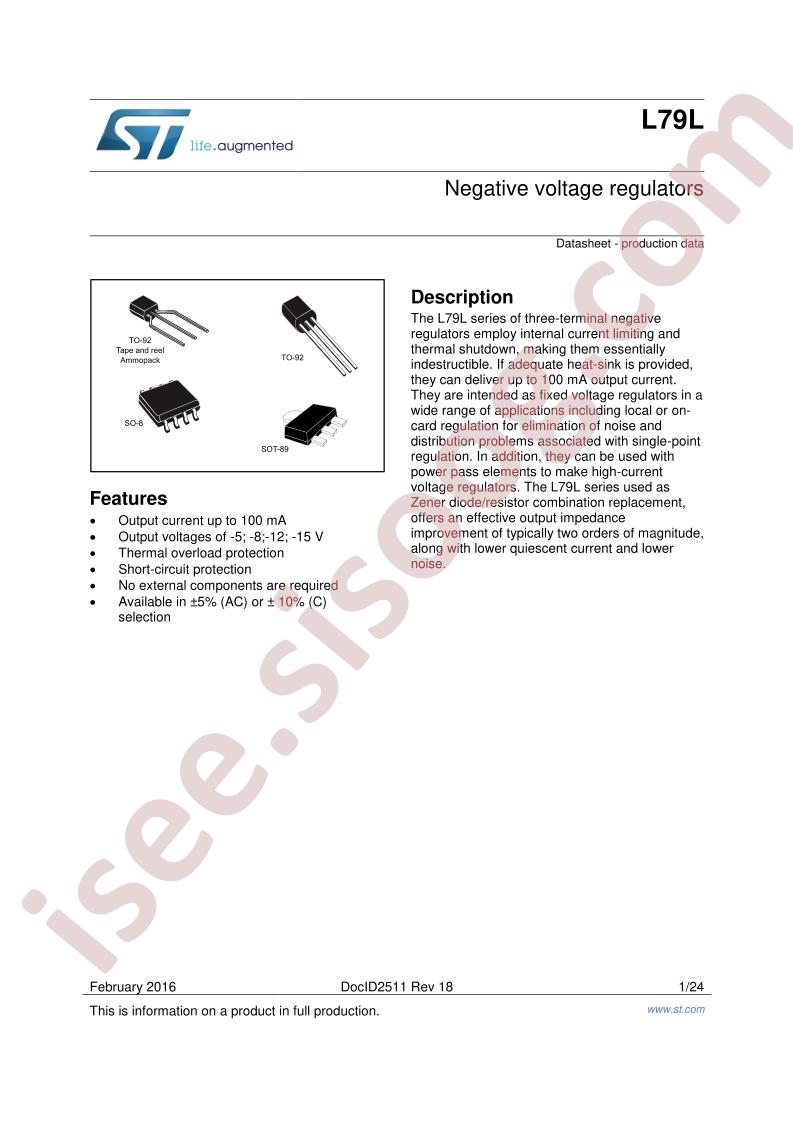

- دیتاشیت L79L08ACD13TR
L79L08ACD13TR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | L79L08ACD13TR |
|---|---|
| حجم فایل | 820.562 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 24 |
دانلود دیتاشیت L79L08ACD13TR |
دانلود دیتاشیت |
|---|
سایر مستندات
L79L 24 pages
L79L05ABD13TR 23 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: STMicroelectronics L79L08ACD13TR
- Output Type: Fixed
- Output Current: 100mA
- Output Voltage: 8V
- Dropout Voltage: -
- Output Polarity: Negative
- Number of Outputs: 1
- Maximum Input Voltage: 30V
- Operating Temperature: 0°C~+125°C
- Quiescent Current (Ground Current): 5.5mA
- Power Supply Rejection Ratio (PSRR): 45dB@(120Hz)
- Package: SOP-8
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Cut Tape (CT)
- Part Status: Active
- Output Configuration: Negative
- Number of Regulators: 1
- Voltage - Input (Max): -30V
- Voltage - Output (Min/Fixed): -8V
- Voltage - Output (Max): -
- Voltage Dropout (Max): -
- Current - Output: 100mA
- Current - Quiescent (Iq): 5.5mA
- Current - Supply (Max): 6mA
- PSRR: 45dB (120Hz)
- Control Features: -
- Protection Features: Over Temperature, Short Circuit
- Mounting Type: Surface Mount
- Package / Case: 8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package: 8-SO
- Base Part Number: L79L08
- detail: Linear Voltage Regulator IC 1 Output 100mA 8-SO
