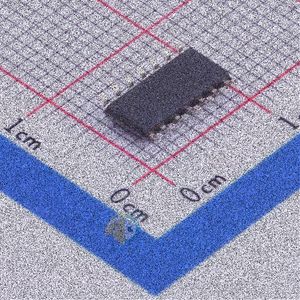

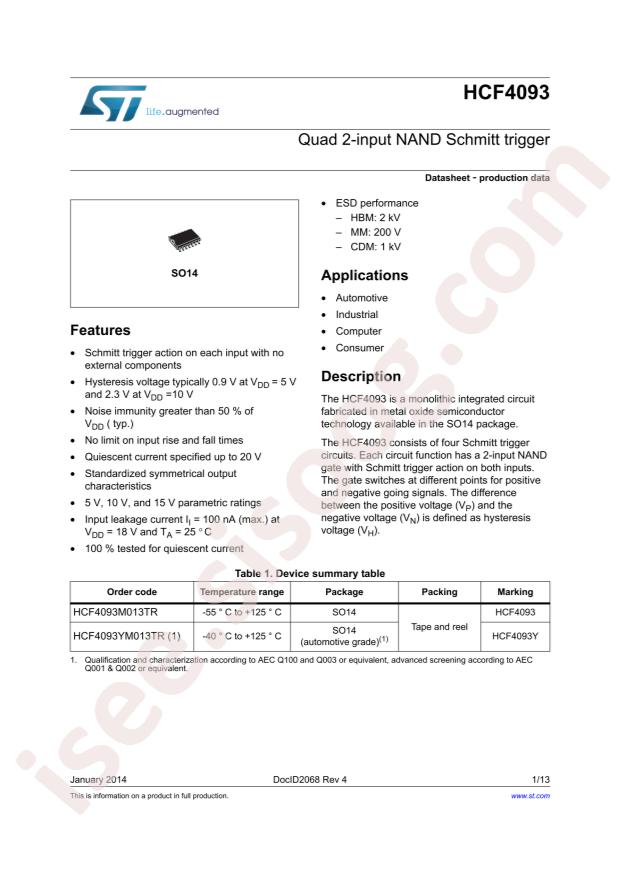

HCF4093YM013TR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
HCF4093YM013TR
|
|
حجم فایل
|
65.072
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
13
|
مشخصات فنی
-
RoHS:
true
-
Series:
4000
-
Category:
Logic ICs/Gates
-
Datasheet:
STMicroelectronics HCF4093YM013TR
-
Sink Current:
6.8mA
-
Source Current:
6.8mA
-
Supply Voltage:
3V~20V
-
Logic Gate Type:
NAND Gates
-
Number of Channels:
4
-
Low Level Range (VIL):
0.9V~4V
-
Operating Temperature:
-40°C~+125°C
-
High Level Range (VIH):
3.6V~10.8V
-
Propagation Delay Time:
130ns@15V,50pF
-
Quiescent Current (Max):
20uA
-
Package:
SOP-14
-
Manufacturer:
STMicroelectronics
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Logic Type:
NAND Gate
-
Number of Circuits:
4
-
Number of Inputs:
2
-
Features:
Schmitt Trigger
-
Voltage - Supply:
3V ~ 20V
-
Current - Quiescent (Max):
20µA
-
Current - Output High, Low:
6.8mA, 6.8mA
-
Logic Level - Low:
0.9V ~ 4V
-
Logic Level - High:
3.6V ~ 10.8V
-
Max Propagation Delay @ V, Max CL:
130ns @ 15V, 50pF
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
14-SO
-
Package / Case:
14-SOIC (0.154", 3.90mm Width)
-
Base Part Number:
HCF4093
-
detail:
NAND Gate IC 4 Channel Schmitt Trigger 14-SO
