دیتاشیت TMS320F2810PBKA

مشخصات دیتاشیت

TMS320F2810PBKA	دانلود دیتاشیت

RoHS: true
CPU Core: Other series
Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
ADC (Bit): 12bit

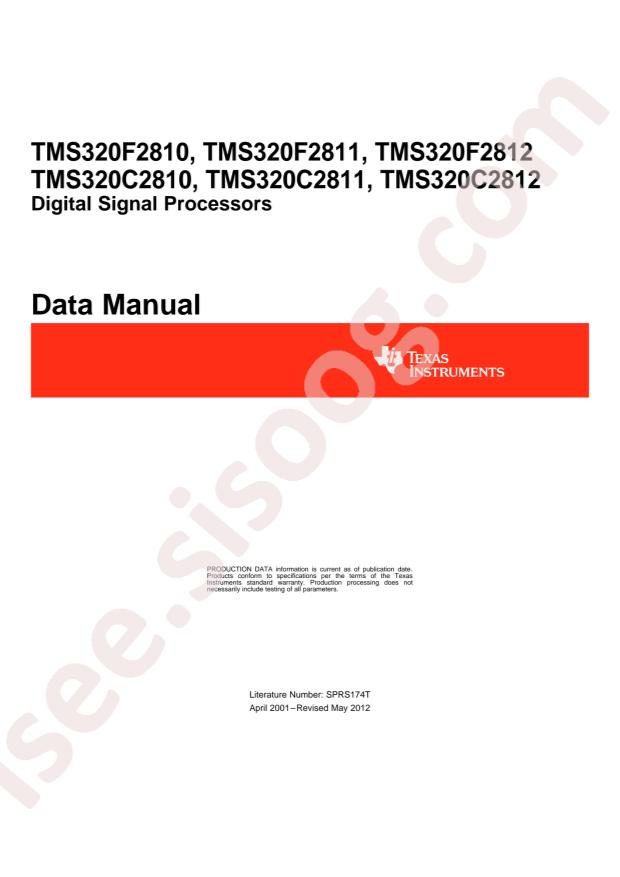

Datasheet: Texas Instruments TMS320F2810PBKA
CPU Maximum Speed: 15MHz
GPIO Ports Number: 56
Direct Memory Access: Yes
Universal Serial Bus: -
Operating Voltage Range: 1.81V~2V
Operating Temperature Range: -40°C~+85°C
Secure Digital Input and Output: Yes
Package: LQFP-128(14x14)
Manufacturer: Texas Instruments
Mounting Type: Surface Mount
RAM Size: 18K x 16
Connectivity: CANbus, McBSP, SCI, SPI, UART/USART
Packaging: Tray
Data Converters: A/D 16x12b
Number of I/O: 56
Core Size: 32-Bit
Core Processor: C28x
Supplier Device Package: 128-LQFP (14x14)
Operating Temperature: -40°C ~ 85°C (TA)
Part Status: Active
EEPROM Size: -
Package / Case: 128-LQFP
Voltage - Supply (Vcc/Vdd): 1.81V ~ 2V
Program Memory Size: 128KB (64K x 16)
Base Part Number: TMS320
Speed: 150MHz
Series: Automotive, AEC-Q100, C2000™ C28x Fixed-Point
Oscillator Type: Internal
Program Memory Type: FLASH
Peripherals: DMA, POR, PWM, WDT
detail: C28x Automotive, AEC-Q100, C2000™ C28x Fixed-Point Microcontroller IC 32-Bit 150MHz 128KB (64K x 16) FLASH 128-LQFP (14x14)
