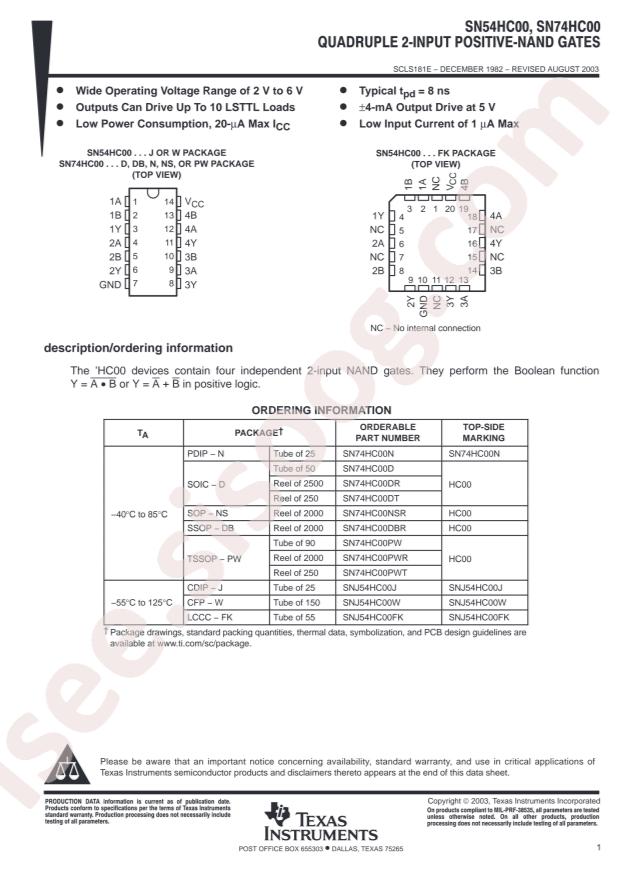

- دیتاشیت SN74HC00PWR
SN74HC00PWR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | SN74HC00PWR |
|---|---|
| حجم فایل | 75.27 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 21 |
دانلود دیتاشیت SN74HC00PWR |
دانلود دیتاشیت |
|---|
سایر مستندات
SN54HC00, SN74HC00 30 pages
مشخصات فنی
- RoHS: true
- Series: 74HC
- Category: Logic ICs/Gates
- Datasheet: Texas Instruments SN74HC00PWR
- Sink Current: 5.2mA
- Source Current: 5.2mA
- Supply Voltage: 2V~6V
- Logic Gate Type: NAND Gates
- Number of Channels: 4
- Low Level Range (VIL): 0.5V~1.8V
- Operating Temperature: -40°C~+85°C
- High Level Range (VIH): 1.5V~4.2V
- Propagation Delay Time: 15ns@6V,50pF
- Quiescent Current (Max): 2uA
- Package: TSSOP-14
- Manufacturer: Texas Instruments
- Part Status: Active
- Max Propagation Delay @ V, Max CL: 15ns @ 6V, 50pF
- Package / Case: 14-TSSOP (0.173", 4.40mm Width)
- Logic Level - Low: 0.5V ~ 1.8V
- Current - Output High, Low: 5.2mA, 5.2mA
- Base Part Number: SN74HC0
- Current - Quiescent (Max): 2µA
- Mounting Type: Surface Mount
- Number of Inputs: 2
- Voltage - Supply: 2V ~ 6V
- Number of Circuits: 4
- Packaging: Cut Tape (CT)
- Logic Type: NAND Gate
- Supplier Device Package: 14-TSSOP
- Features: -
- Logic Level - High: 1.5V ~ 4.2V
- detail: NAND Gate IC 4 Channel 14-TSSOP
