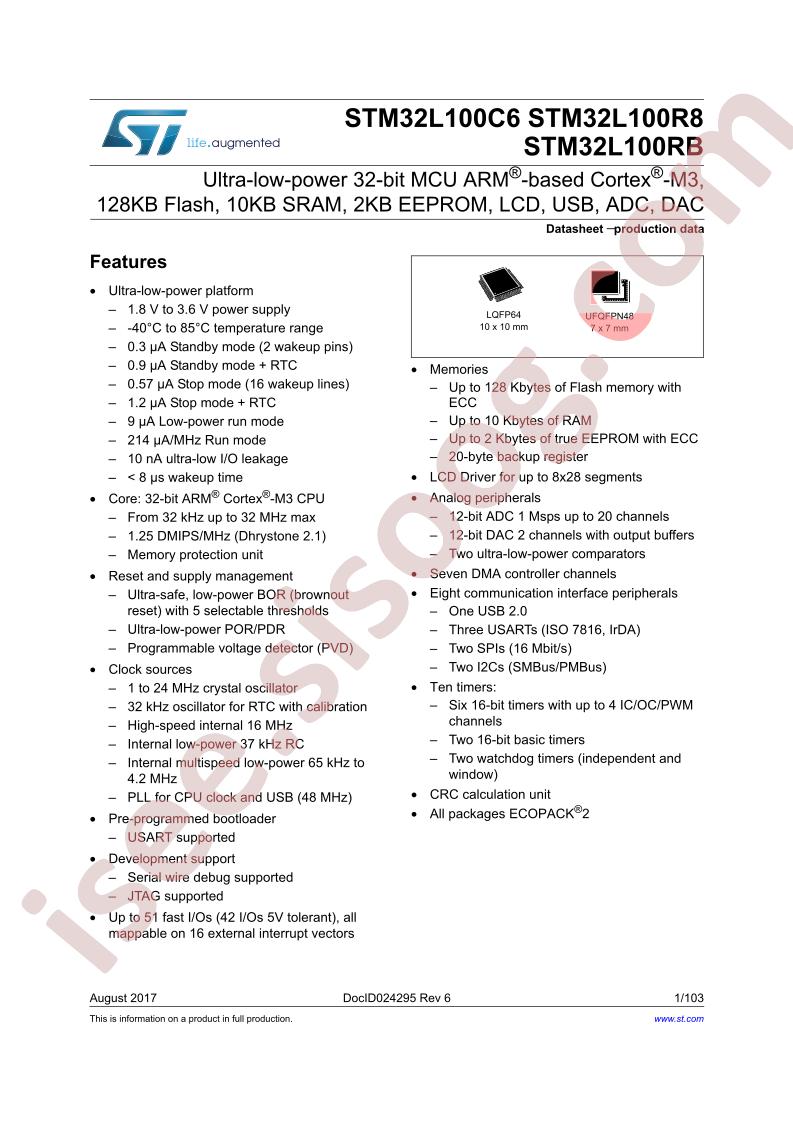

- دیتاشیت STM32L100C6,R8,RB Datasheet
STM32L100C6,R8,RB Datasheet دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | STM32L100C6,R8,RB Datasheet |
|---|---|
| حجم فایل | 1704.344 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 103 |
دانلود دیتاشیت STM32L100C6,R8,RB Datasheet |
دانلود دیتاشیت |
|---|
سایر مستندات
STM32L100RBT6 103 pages
مشخصات فنی
- RoHS: true
- EEPROM: -
- CPU Core: ARM Cortex-M3
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 4KB
- Watchdog: -
- ADC (Bit): 12bit
- DAC (Bit): 12bit
- Datasheet: STMicroelectronics STM32L100C6U6
- PWM (Bit): -
- Real-Time Clock: -
- CPU Maximum Speed: 32MHz
- GPIO Ports Number: 37
- Low-Voltage Detect: -
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: DMA;LCD/LED Driver
- Program Memory Type: FLASH
- Direct Memory Access: -
- Program Storage Size: 32KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 1.8V~3.6V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: TQFN-48-EP(7x7)
- Manufacturer: STMicroelectronics
- Series: STM32L1
- Packaging: Tray
- Part Status: Active
- Core Processor: ARM® Cortex®-M3
- Core Size: 32-Bit
- Speed: 32MHz
- Connectivity: I²C, SPI, UART/USART, USB
- Peripherals: Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT
- Number of I/O: 37
- Program Memory Size: 32KB (32K x 8)
- EEPROM Size: 2K x 8
- Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.6V
- Data Converters: A/D 16x12b; D/A 2x12b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 85°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 48-UFQFN Exposed Pad
- Base Part Number: STM32L100
- detail: ARM® Cortex®-M3 STM32L1 Microcontroller IC 32-Bit 32MHz 32KB (32K x 8) FLASH
